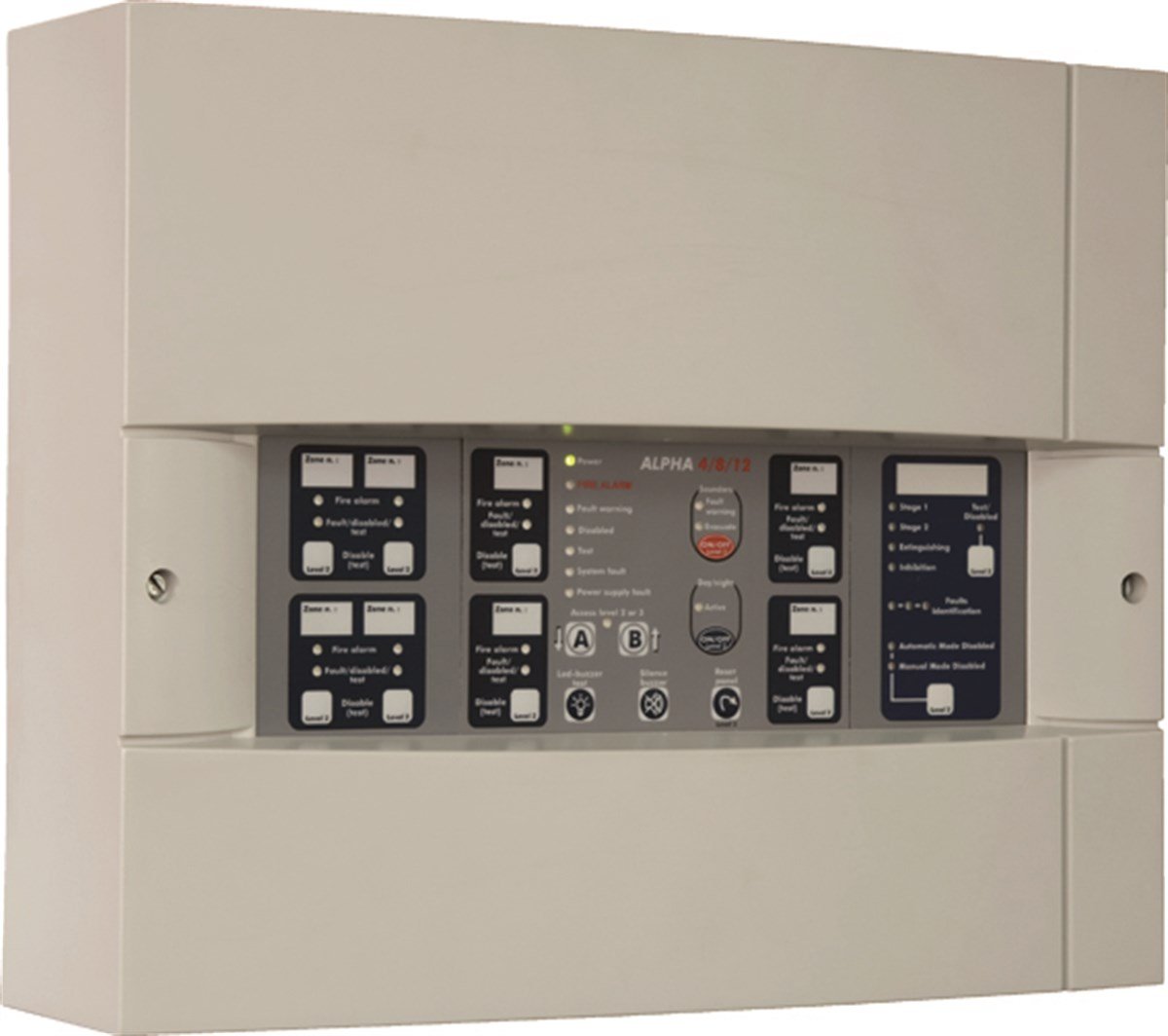

ALPHA4/8/12 COVENTIONAL FIRE DETECTION CONTROL PANEL
ALPHA 4/8/12, modular, compact and economic, is the adapted solution for small installations. It is microprocessor controlled with SMD technology and with panel programming it is easy to use and install.With its 4 zones in the basic version and its design, it is adapted for small installations.
Main characteristics:
From 4 (128 points) to 12 (384 points) conventional detection lines
Possibility to manage 2 extinguishing channels maximum
32 detectors and/or manual call points per line
Monitored sounders line
Day/night mode
Programming by keyboard at access level 3
Easy management
Electrical specification:
Mains supply voltage: 230V ~ 50Hz
Operating voltage: 27Vdc
Wiring: From 0,5 mm2 (500m max) to 2,5 mm ² (2500m max)
Batteries: 2 x 12V/7,2AH
Maximum current supplied: 1A
Mechanical characteristics:
Dimensions (mm) / weight (without batteries): 300x370x118 (h x w x d) / 2Kg
IP rating: 31
Climatic characteristics:
Operating temperature: 0°C to 50°C
Inputs/outputs:
AR4D base detection module: 4 detection lines (128 points)
1 monitored programmable input : external power supply state monitoring (standard configuration), external sounders line activation, external reset panel
1 monitored sounders line: 24V/450mA
1 monitored external power supply output: 24V/450mA
4 programmable open collector outputs: alarm, pre alarm, disabled, test, system fault, power supply fault, fault warning, evacuate, active, buzzer on, reset: 40V/0,1A
1 Alarm NC/NO & 1 Fault NC/NO relay contact: 30V/1A
