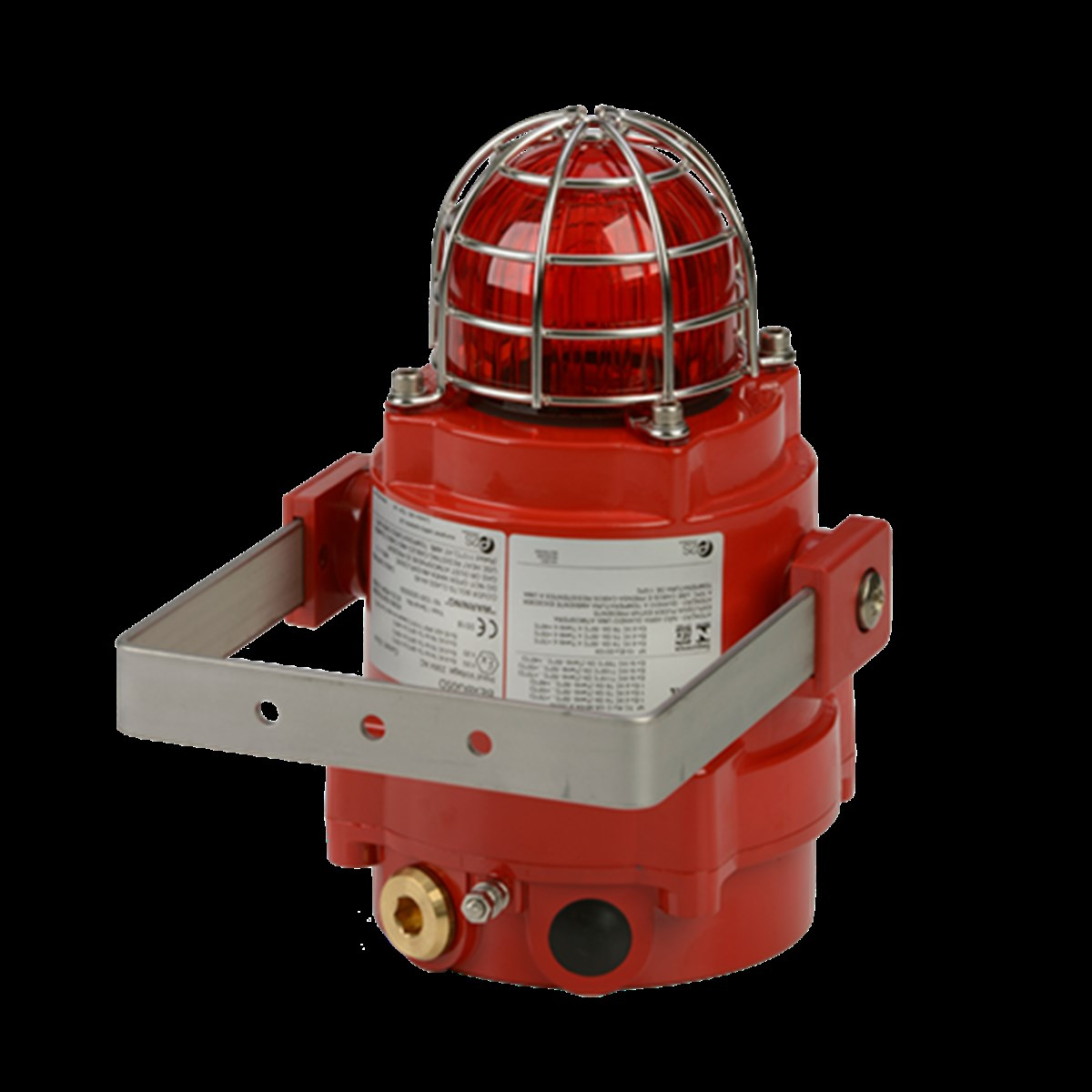

BEXBG05D230 EXPLOSION PROOF XENON BEACON 5 JOULE (GYAE2SBEXBG05D230)

BEXBG05D230 EXPLOSION PROOF XENON BEACON 5 JOULE

Features
Marine grade, corrosion proof, LM6 aluminium enclosure
Automatic synchronisation on multi-beacon system.
Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems.
Xenon tubes mechanically secured against shock & vibration
Glass lens & Stainless Steel guard
Very large termination area.
Dual M20 cable entries – adaptors available.
Stopping plug included.

Specification
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 500,000 cd – calculated from energy (J)
Eff. Intensity cd: 250 cd – calculated from energy (J)
Peak Candela: 39,463 cd* – measured ref. to I.E.S.
Eff. Intensity cd: 120 cd* – measured ref. to I.E.S.
Ratchet adjustable stainless steel ‘U’ bracket.
Reverse polarity diode fitted.
IP66/67 ingress protection.
120 candela effective light intensity.
UV stable PC, field replaceable, colour lens filter.

Voltages AC:230Vac
