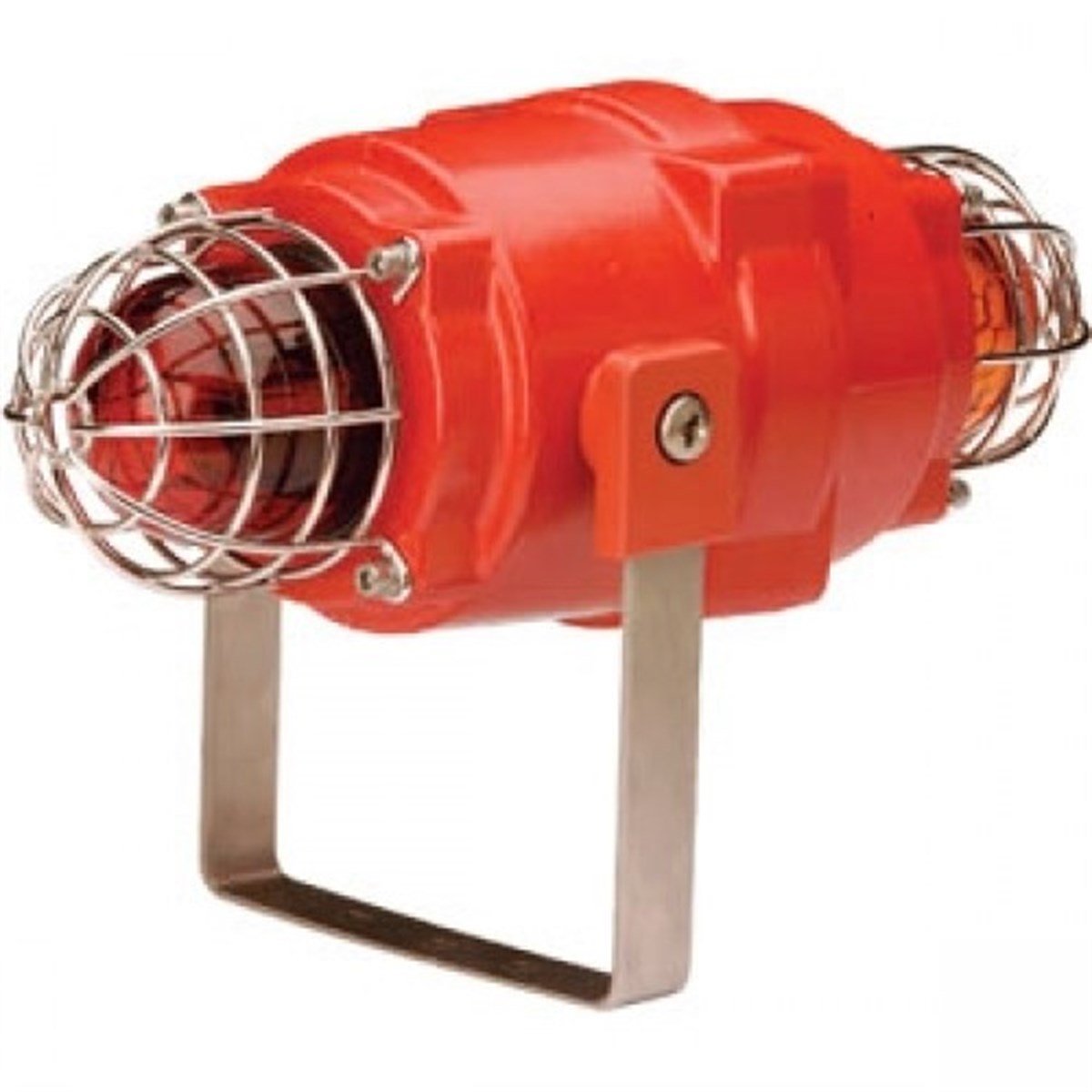

BEXCBG0505D230 EXPLOSION PROOF DUAL XENON BEACON 5 JOULE (GYAE2SBEXCBG0505D230)

BEXCBG0505D230 EXPLOSION PROOF DUAL XENON BEACON 5 JOULE

Features
Marine grade, corrosion proof, LM6 aluminium enclosure
Automatic synchronisation on multi-beacon system.
Beacons can be set to ‘flip-flop’ alternating mode with other units
on multi-beacon systems.
Xenon tubes mechanically secured against shock & vibration
Glass lens & Stainless Steel guard
Very large termination area.
Dual M20 cable entries – adaptors available.
Stopping plug included.
Ratchet adjustable stainless steel ‘U’ bracket.
Reverse polarity diode fitted.
IP66/67 ingress protection.
120+120 candela effective light intensity.
UV stable PC, field replaceable, colour lens filters.

Specification
Energy: 5 Joules x 2 (5Ws)

Flash rate: 1Hz (60 fpm)

Peak Candela: 500,000 cd x2 – calculated from energy (J)

Eff. Intensity cd: 250 cd x2 – calculated from energy (J)

Peak Candela: 39,463 cd* x2 – measured ref. to I.E.S.

Eff. Intensity cd: 120 cd* x2 – measured ref. to I.E.S.

Ingress protection: IP66/67

Voltages AC: 230Vac
