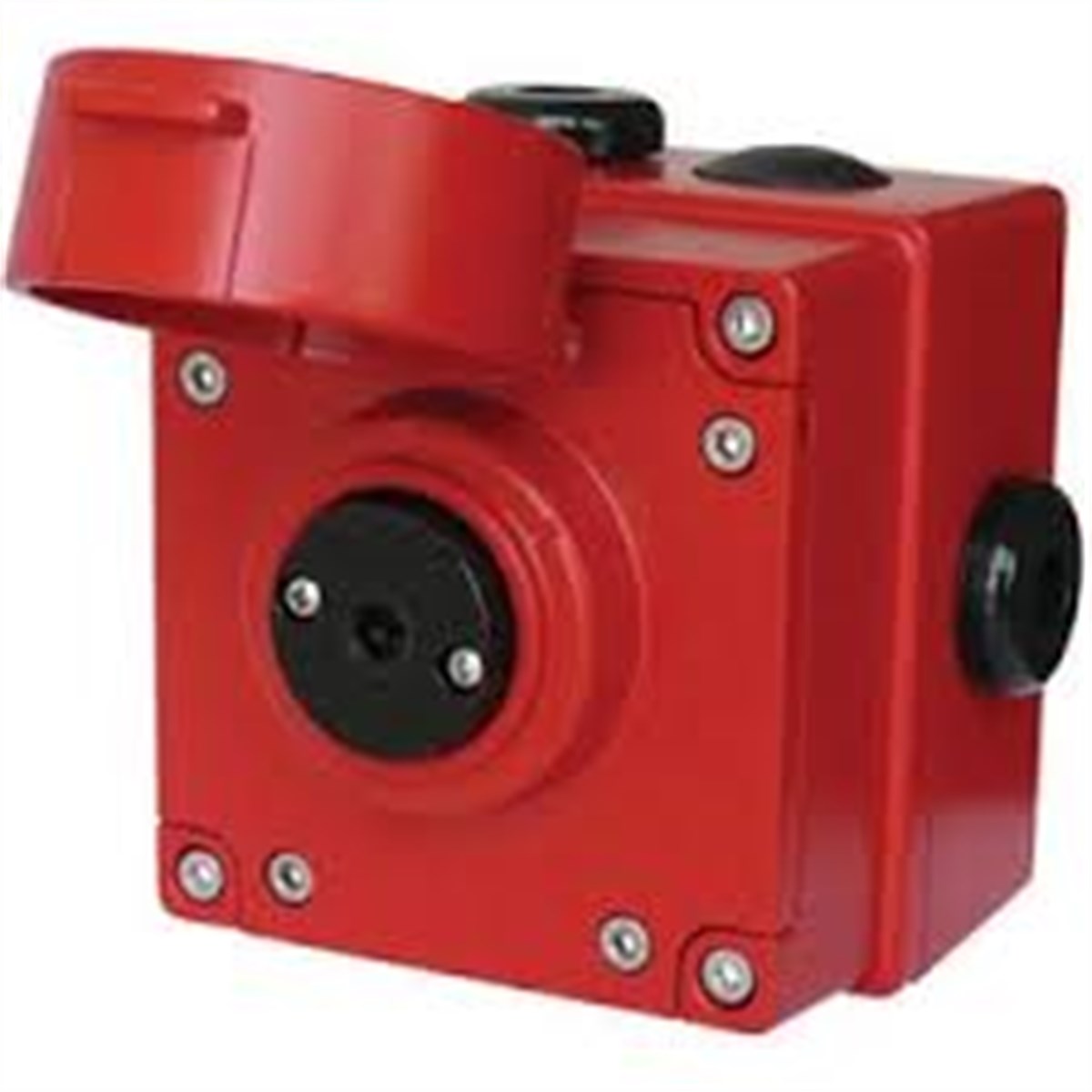

BEXCP3A/PT EXPROOF TOOL RESET CALL POINT (GYAE2SBEXCP3APT)

BEXCP3A/PT EXPROOF TOOL RESET CALL POINT

Options:
Alternative housing colours are available to meet specific requirements.
DIN rail mounted terminal blocks: 8 × 2.5mm²
Metalised Polyester “Duty” label.
Series and/or End of Line resistors.

Approvals:
ATEX certificate: Sira 09ATEX3286X,
IECEx certificate: IECEx SIR 09.0121X,
INMETRO certificate: 10-IEx-0011X
Ex EAC TR CU 012/2011 certified: KZ.1510019.22.01.00271
SIL 2 certified to IEC 61508 (2010)

Specification:

BExCP3A-PT:   II 2G Ex d e IIC T6 Gb
                         II 2D Ex t IIIC T60°C Db

Ingress protection: IP66

Ambient: Ta = -40°C to +55°C [-40° to +131°F]
