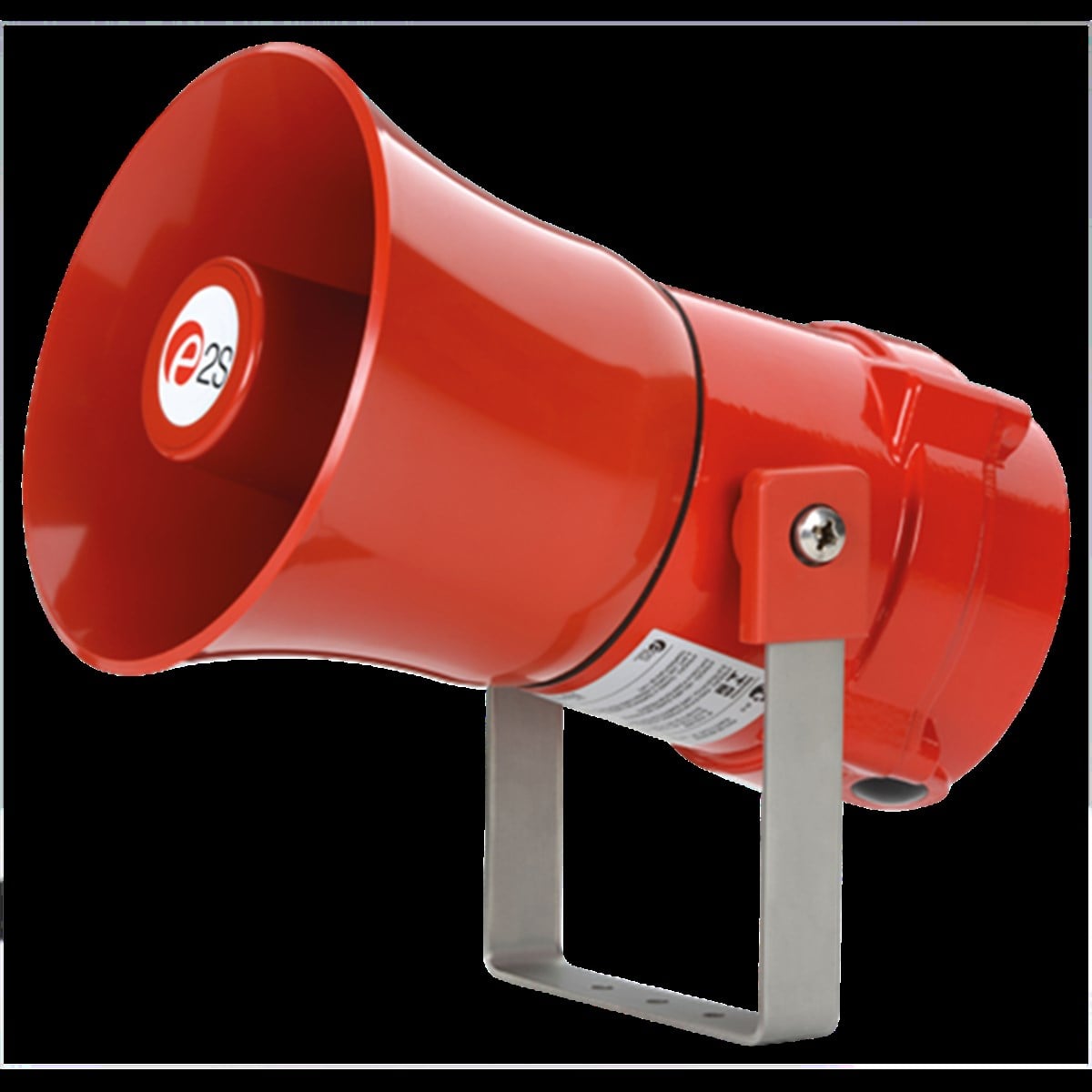

BEXS110D115 EXPLOSION PROOF ALARM HORN SOUNDER (GYAE2SBEXS110D115)

    BEXS110D115 EXPLOSION PROOF ALARM HORN SOUNDER

    Features
Marine grade, corrosion proof, LM6 aluminium enclosure.
Ingress protection IP66/67
Stainless steel fixings
Dual M20 cable entries – adaptors available.
Stopping plug included.
Reverse polarity diode fitted.
Automatic synchronisation on multi-sounder system.
Very large termination area.
Ratchet adjustable stainless steel ‘U’ bracket.
‘Stage Programmable’ version available with 45 tones & 4 remotely selectable stages.

   Approvals
IECEx KEM 10.0003X
ATEX KEMA 99ATEX6312X
TR-CU Ex EAC certificate: RU C-GB.AA71.B.00109
VdS certificate: G206011
CPD certificate: 0786-CPD-20225
SIL 1 compliant to IEC 61508 (2010) – standard
SIL 2 compliant to IEC 61508 (2010) – optional
INMETRO certificate: 10-IEx-0009
Marine Equipment Directive (MED) Certificate: MEDB00001BU
CCOE PESO

   Specification
Maximum output: 117dB(A) @ 1 metre [108dB(A) @ 10ft/3m]

       Nominal output: 110dB(A) @ 1m +/- 3dB – Tone 2 [101dB(A) @10ft/3m]

       No. of tones: 32 (UKOOA / PFEER compliant)

       Ingress protection: IP66/67

       Voltages AC:115 VAC
