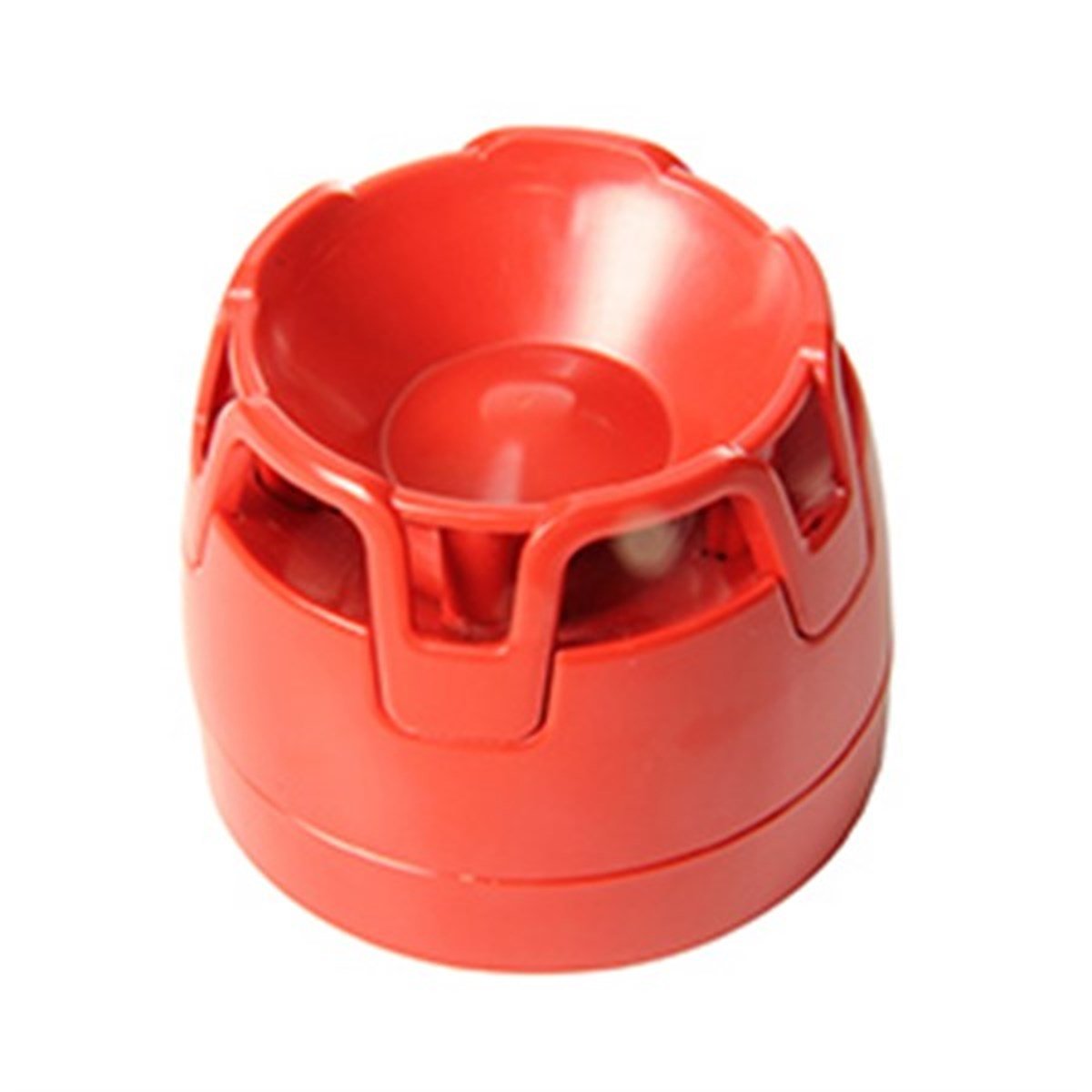

CWSO-RR-S1 CONVENTIONAL SOUNDER (GYANSCWSORRS1)

CWSO-RR-S1 CONVENTIONAL SOUNDER

• Modern design eliminates need for device orientation.
• First fix capability allowing electrical continuity testing
prior to device fitting.
• Deep base option with multiple cable entries for flexible
installation.
• Designed with full range of common fixing centres.
• Positive fit engagement & feedback of base with device
for easy installation.

• Approved to EN54-3.
• Superior sound output and low current consumption.
• 32 tones all approved to EN54-3.
• Adjustable volume settings.
• Two stage sounders enable alert and alarm sequences
to be set for phased evacuation.
• Synchronised sound output.

Operating Voltage: 9 to 29VDC
(Approved to EN54-3 @ 9-14V and 18-29V)
Average current consumption: 31mA @ 29VDC (Tone 8)
Maximum Sound Output: 107dB (A) @ 1m (Tone 23)
