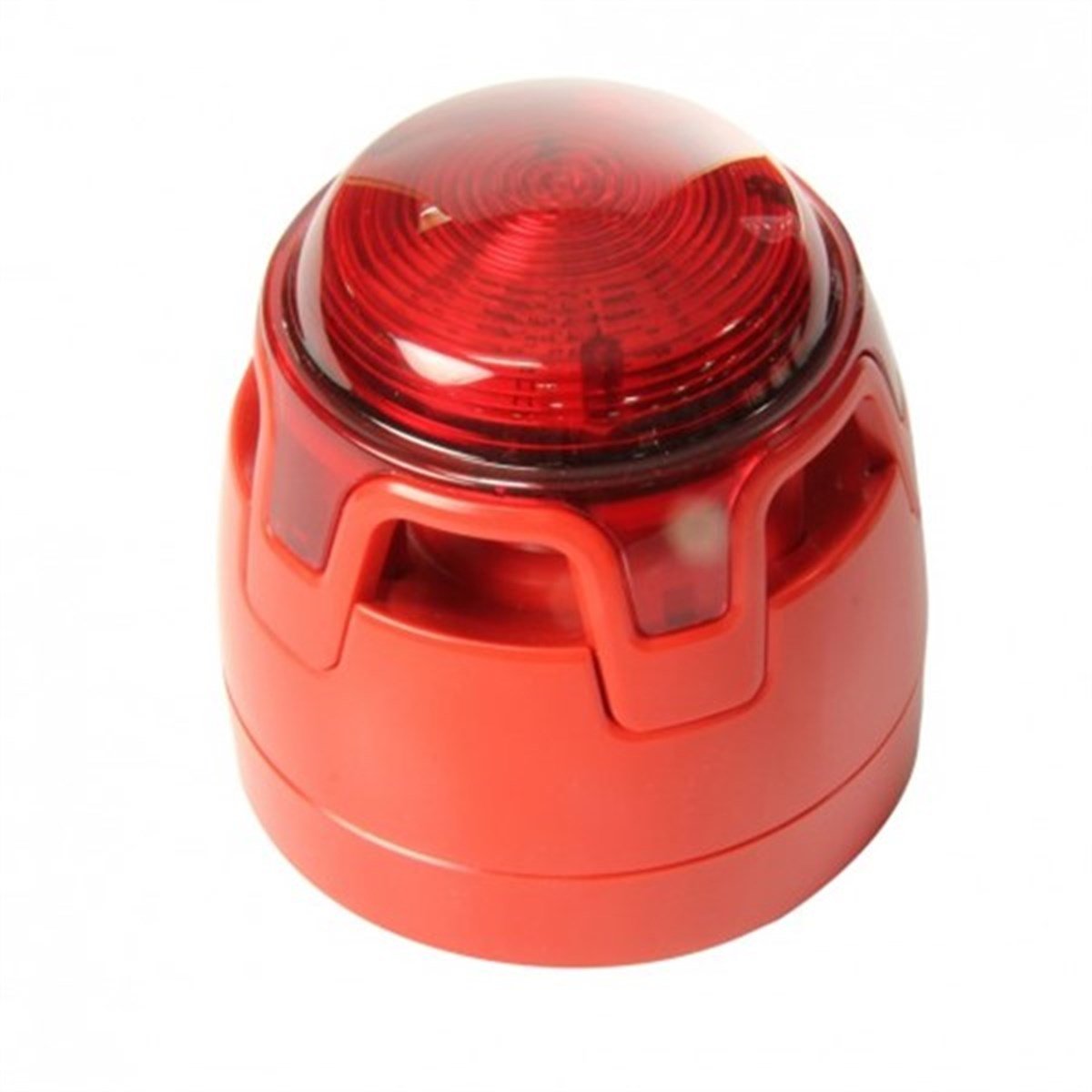

CWSS-RB-S7 CONVENTIONAL SOUNDER BEACON (GYANSCWSSRBS7)

CWSS-RB-S7 CONVENTIONAL SOUNDER BEACON

Simple, Fast, Flexible Installation
• Modern design and aesthetics eliminates the need
for device orientation.
• First fix capability allows electrical continuity testing
prior to device fitting.
• Deep base option with multiple cable entries for flixible
installations.
• Designed with full range of common fixing centres.
• Positive fit engagement & feedback of base with device
for easy installation.

• Approved to EN54-3 for sound.
• Global tone set: 32 approved tones including bell tone.
• LED technology & advanced optics provides light
indication at very low current draw.
• Synchronisation of flash and sound.
• Red or Amber light flash
• Operates on 12V and 24V systems, making the
range suitable for use in security applications.

Operating Voltage: 12 to 29 VDC
Current consumption, average: 22mA @ 29VDC (Tone 7)

Body colour: Red / White
Sound Output, maximum: 107dB(A) @1m (Tone 23)
Number of Tones: 32 and includes a bell tone.
Full tone table available on website & installation manual
