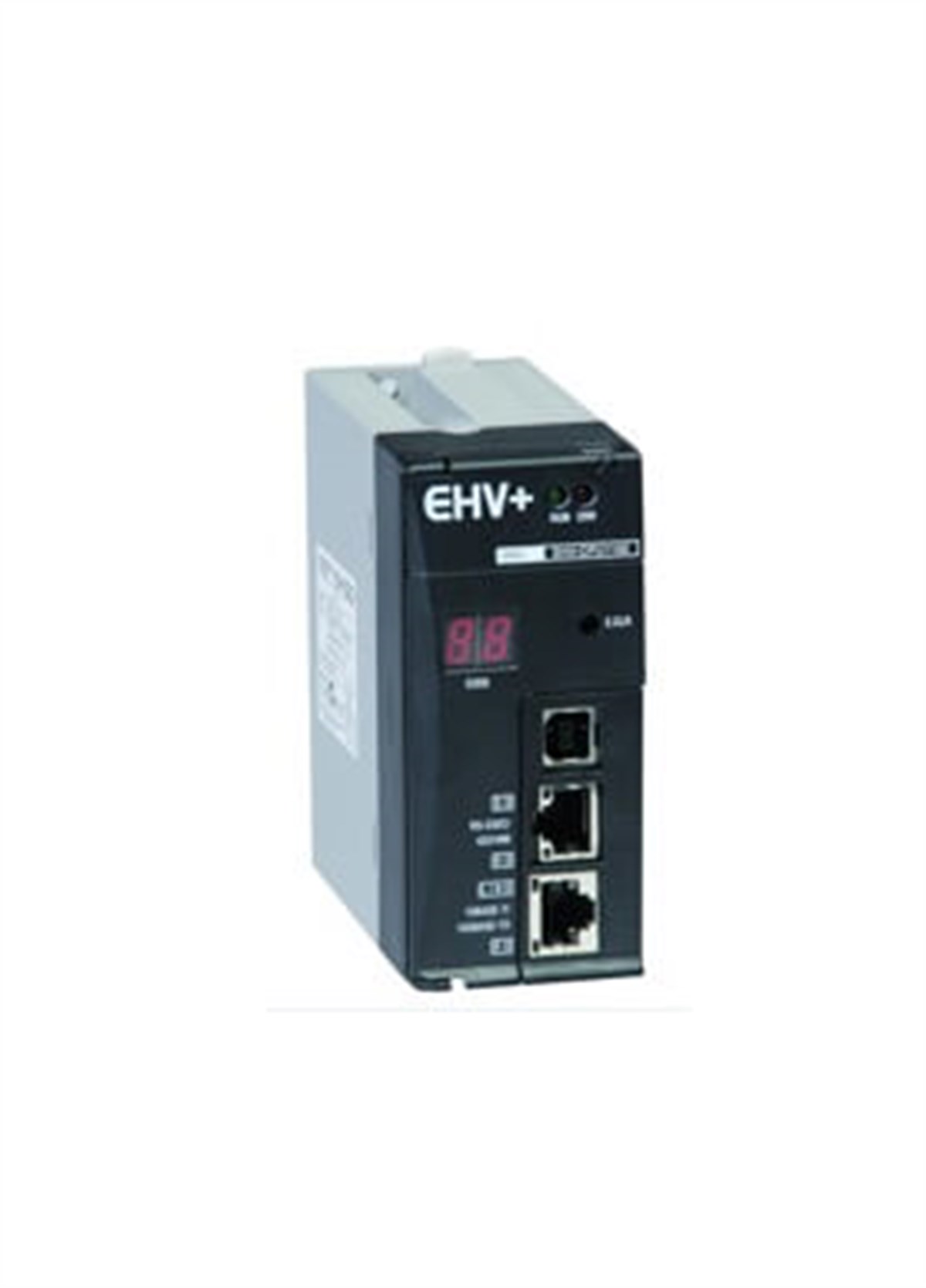

Hitachi Modular EHV + Series PLC
EHV + CPU1102 CPU
145 ns processing speed, 6 MB Memory
Programming with Codesys (IEC 61131-3)

Hitachi Modular EHV + Series PLC
EHV-CPU1102
With a maximum of 66 I / O module inputs, it can control 4224 points from a single CPU, 1 MB Flash memory, 6 MB source file memory space
1 Ethernet, 1 RS232, 1 USB,
145 ns processing speed
Rich Port Facility on CPU
Programming with Codesys (IEC 61131-3)

Ethernet, USB, serial communication ports on the new powerful EHV + CPU are standard and have a modular structure. It is programmed with CoDeSys.

Standard Features:

High performance CPU and IO modules
Processing Speed: 145 ns
Conforms to IEC 61131-3 Standards. Programming with CoDeSys V3
High Memory Capacity
- User Program (RAM): 1024 Kbyte
- Boot Project (FLASH): 1024 Kbyte
- Source File: 6 Mbytes
- Data Memory: 256 Kbytes
Communication Protocols:
Modbus TCP Client
- Modbus RTU Master
- EtherCAT Master
Communication Types:
Ethernet (10/100)
- USB (V2.0 Full speed 12 Mbps),
- RS232 / RS-422 / RS-485
Compatibility with Various Programming Languages
(Ex: LD, IL, FBD, ST, SFC, CFC)
