The sequential recording system of COLDSTORE, SFS™, writes to the hard disk in a revolutionary manner, providing exceptional reliability and offering a low total cost of ownership.

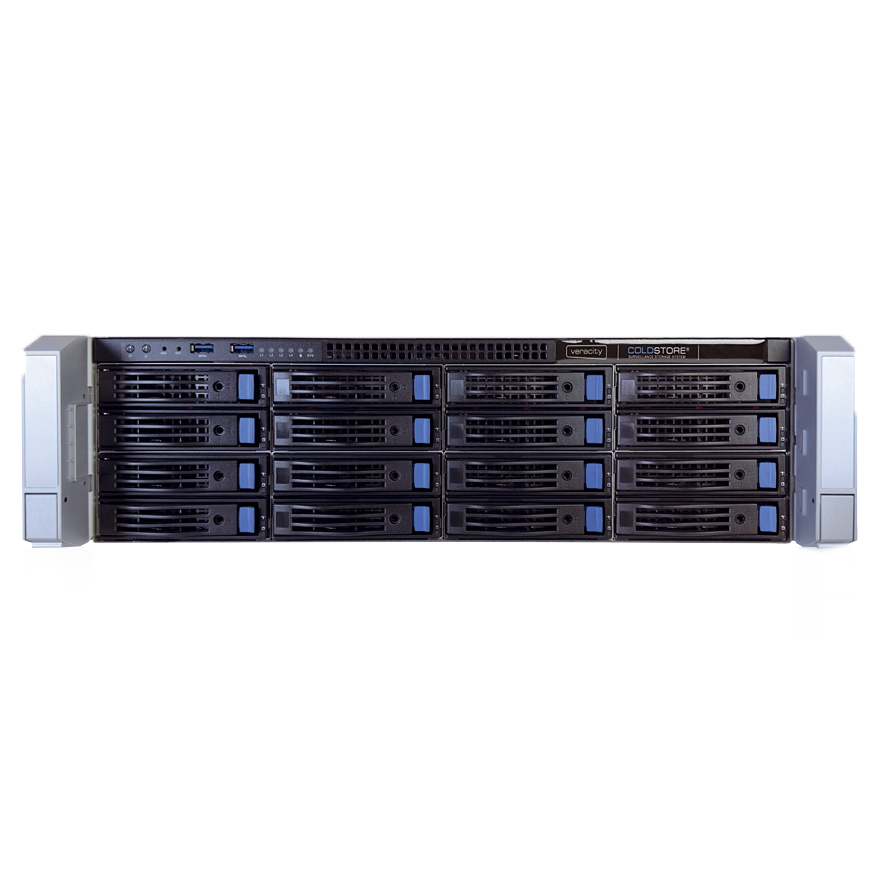

COLDSTORE 3U Pro 16 is ideal for cost-effective, high-technology projects. It offers ample storage capacity, extended disk lifespans, long-term file retention, and simple system management.
Guaranteed Reliability
Linear Array Idle Disks (L.A.I.D™) Combined with COLDSTORE's technology, the unique Sequential File System (S.F.S™) produces a powerful and simple system that provides generous storage capacity at a low cost. Despite its simple concept, this system offers a highly reliable storage solution that significantly extends disk life, even when using the lowest-cost disks available.
Low Power, Low Cost
COLDSTORE'un bu 3U Pro 16 sürümü, önceki 15 yuvalı birime göre daha yüksek performans sağlar, ancak aynı yüksek düzeyde güvenilirlik sağlar. Yüksek kamera sayısı ve daha yüksek bit hızları gibi daha zorlu uygulamalara yöneliktir. Bağlanabilen çift Gigabit Ethernet bağlantı noktalarıyla sistem, 1 Gbps'ye kadar video trafiğini işleyebilir.
Extended Disk Lifespan
The disks are utilized sequentially, with unused disks being powered off to save energy and significantly reduce temperature, vibration, and wear - the three main disk killers. The system employs a unique mirrored overlapping dual writing model to ensure full redundancy during critical writing processes, providing the resilience of RAID1 without requiring twice the number of disks. Within each disk, the sequential disk filing system eliminates vibrations from the disk and lowers the operating temperature. In the array, the use of sequential mirrored overlapping writing pairs only activates two disks at any given time while the others remain offline. This greatly reduces wear and diminishes array vibration and operating temperature. On average, each disk remains powered off 87% of the time. Disks automatically power up for playback, but playback from disks that are typically not written to is rare and has a negligible impact on the average duty cycle.
Purpose-Built System
COLDSTORE 3U Pro 16 is built around industry-standard system components optimized by Veracity and supported by energy-efficient software. Even a fully loaded 320TB array will consume less than 90 watts. This low power consumption extends the lifespan of electronic components, resulting in extended disk lifespans, reduced cooling costs, and lower UPS purchasing costs, leading to a very low total cost of ownership.
GENERAL Storage Array Type: Sequential array with L.A.I.D.™ and S.F.S.™ disk filing system Interface: Dual Gigabit Ethernet Data Output: 1 Gbps (unlimited scalability with multiple COLDSTORE units)
