Igel 400V - 315 kW - 580 A
Soft Starter
3 Phase Thyristor Controlled
With Internal By-Pass

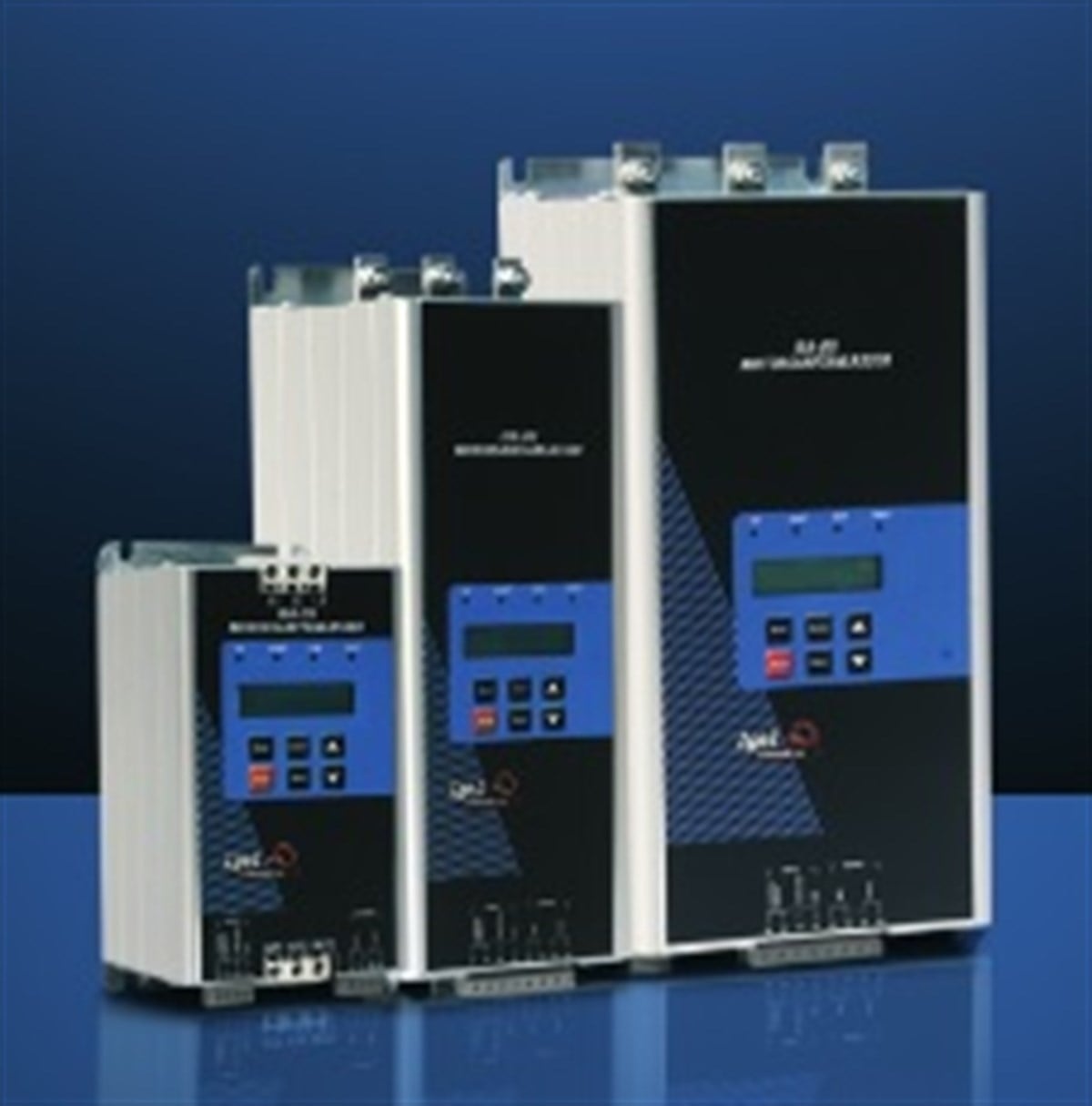

* Product Image Representation. Actual Size (WxHxD) = 480x791x302 mm, Weight: 55.5 kg



Igel softstarters are designed for industrial working conditions and are fully digital controlled. It has an internal By-pass contact in the entire power range. Two independent parameters can be entered for take-off and stop and switch between parameters with a single button. First movement with a pulsed take off feature
can take off easily to difficult loads. It has selectable curves for the launch ramp. It provides full protection to your engine with its unique engine protection features.
It has special application software.

Standard Features:

LCD Panel
Built-in By-pass system
CE, UL, c-UL, TA and ISO 9001
Modbus, Profibus communication features (Optional)
Inrush current can be adjusted between 10% and 50%
Current limit is 100% In and 400% In
Start time can be increased up to 30 seconds
Downtime can be increased up to 30 seconds
Two different take off stop parameters can be specified
Take-off and stop ramps are selectable
External Fault Contact
Motor protection features remain active even in the case of bypass

Motor Protection Features:

Short circuit (Magnetic)
Overload (Thermal)
Maximum departure time
Phase loss protection
Low / high frequency
Phase sequence distortion
Over or under voltage
Thyristor short circuit
Connection error
Over temperature
Low current
External error signal
