MBS100W WiFi-Modbus Çevirici
MBS100W WiFi-Modbus Çevirici
MBS100W WiFi-Modbus Çevirici

MBS100W WiFi-Modbus Gateway (MBS100-E0W-GC2-B0000 WiFi-Modbus Çevirici)

Brand : Mikrodev
Price : $180.00  + VAT
Vat included : $216.00
Stock Amount : 1

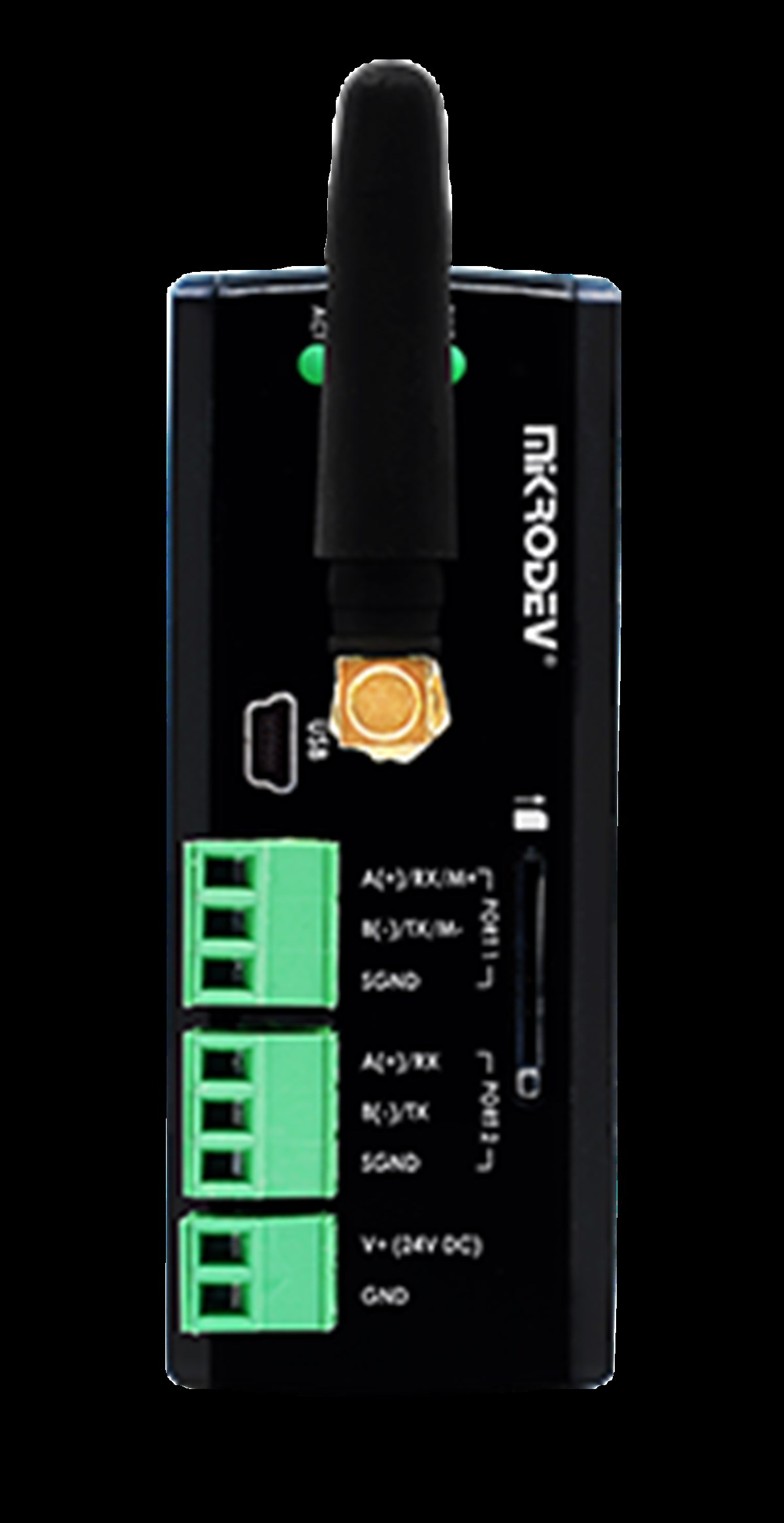

MBS100W Mikrodev WiFi-Modbus Gateway

Add to Favorites
Add to my Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock

Piece

Artır Azalt
Recommend
Write a comment




MBS100W Mikrodev WiFi-Modbus Gateway

Product Features
User-friendly Software for Configuring Gateway Yes
Programming with USB Cable Yes
Upload/Download Program over TCP/IP Yes
Master/Slave Communication Yes
Communication Between Networks Through Protocols Yes
Multiple Connectivity Yes
Auto-Detect Socket Disconnection and Auto-Reconnection Yes
Remote Firmware Upgrade Yes
View Status of Device Over Web-Interface Yes
Programming
Programming Editor Assistant Software
Device Search over Network Yes
Offline Configuration Yes
Import/Export Configuration Yes
Integrated Communication Ports
Wi-Fi 1 Port, IEEE 802.11 b/g/n
Serial Ports 1 Port RS485 (3 kV ESD Protection), 1 Port RS232
  or 2 Port RS485
USB 1 Port, Mini USB Type B
Communication Protocols
Master Communication Protocols MODBUS RTU, MODBUS TCP
Slave Communication Protocols MODBUS RTU, MODBUS TCP
Communication Modes
Between MODBUS TCP Master and MODBUS RTU Slave Yes
Between MODBUS RTU Master and MODBUS TCP Slave Yes
MODBUS RTU Over TCP Yes
Maximum Connection Count
Number of Server Socket 2
Number of Client Sockets per TCP Server Socket 16
Number of Slave Device on RS485 247
LED Signals
Power 1 LED Blue
Running Status 1 LED Blue
Error 1 LED Blue
Environmental Conditions
Operating Temperature -20 / +75 C
Storing Temperature -40 / +80 C
Humidity 5..95 RH
Protection Standard IP20
Operating Altitude 0..2000 m
Electrical Wiring
Serial Port Inputs Demountable Terminal Block with Screw, (pitch 3.81 mm)
Power Supply Input Demountable Terminal Block with Screw, (pitch 3.81 mm)
Supply
Supply Voltage 9..36 VDC
Supply Current 50 mA @ 24 VDC
Warranty
Duration 24 Months
Certificates CE
