MDC100G.8 GSM-DLMS Modbus Gateway (For 8 Meters) (MDC100-E0G-GC2-B0008 GSM-DLMS Modbus Çevirici)

Brand : Mikrodev
Price : $190.00  + VAT
Vat included : $228.00
Stock Amount : 1

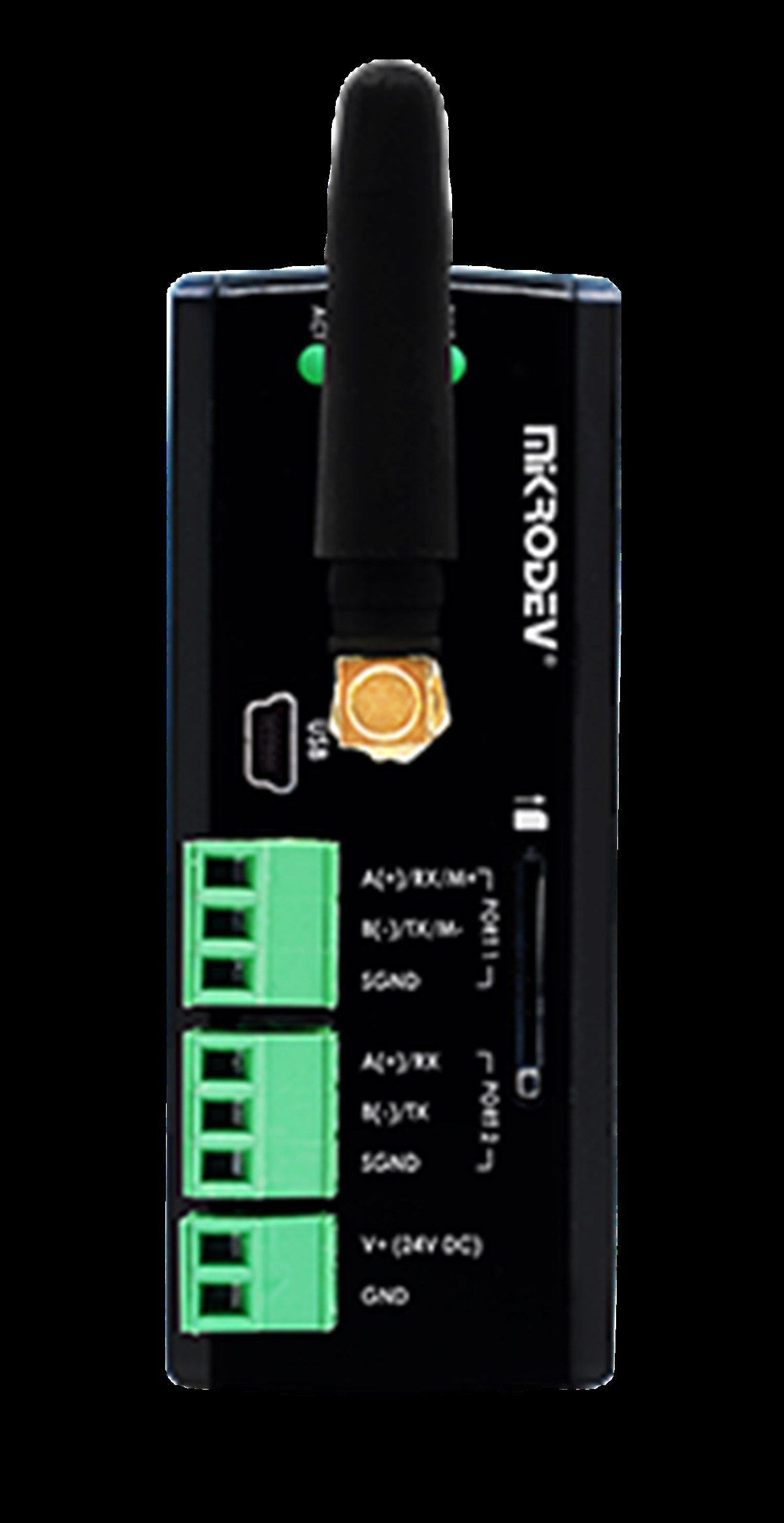

MDC100G.8 Mikrodev GSM-DLMS Modbus Gateway
The number of meters: Max. 8 Pcs.

Add to Favorites
Add to my Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock

Piece

Artır Azalt
Recommend
Write a comment



MDC100G.8 Mikrodev GSM-DLMS Modbus Gateway
The number of meters: Max. 8 Pcs.



Product Features
Creating Gateways Between IEC 62056-21 and MODBUS Protocols Yes
Creating Gateways Between DLMS/COSEM and MODBUS Protocols Yes
Reading Data According to Different OBIS Code Lists Yes
Possibility to Read Multiple Electricity Meters with a Gateway Yes
Reading Data with the DATA READOUT Command Yes
Switching to Programming Mode and Sending Custom Commands Yes
User-friendly Software for Configuring Gateway Yes
Programming with USB Cable Yes
Upload/Download Program over TCP/IP Yes
Master/Slave Communication Yes
Multiple Connectivity Yes
Auto-Detect Socket Disconnection and Auto-Reconnection Yes
Remote Firmware Upgrade Yes
View Status of Device Over Web-Interface Yes
Programming
Programming Editor Assistant Software
Device Search over Network Yes
Offline Configuration Yes
Import/Export Configuration Yes
Automatic MODBUS Addressing via OBIS Code Definitions Yes
Multiple Electricity Meter Selection Yes
Ability to Define Different OBIS Code Lists for Electricity Meters Yes
Defining Electricity Meter Poll Frequency Yes
Integrated Communication Ports
Integrated GSM/GPRS Modem 1 Port, Quad-Band 850 / 900 / 1800 / 1900 MHz
Serial Ports 1 Port RS485 (3 kV ESD Protection), 1 Port RS232
  or 2 Port RS485
USB 1 Port, Mini USB Type B
Communication Protocols
Master Communication Protocols MODBUS TCP, IEC62056-21, DLMS/COSEM
Slave Communication Protocols MODBUS TCP, MODBUS RTU
Maximum Connection Count
Number of Server Socket 2
Number of Client Sockets per TCP Server Socket 16
Max Number of Meters on RS232 1
Max Number of Meters on RS485 32
LED Signals
Power 1 LED Blue
Running Status 1 LED Blue
Error 1 LED Blue
Environmental Conditions
Operating Temperature -20 / +75 C
Storing Temperature -40 / +80 C
Humidity 5..95 RH
Protection Standard IP20
Operating Altitude 0..2000 m
Electrical Wiring
Serial Port Inputs Demountable Terminal Block with Screw, (pitch 3.81 mm)
Power Supply Input Demountable Terminal Block with Screw, (pitch 3.81 mm)
Supply
Supply Voltage 9..36 VDC
Supply Current 50 mA @ 24 VDC
Warranty
Duration 24 Months
Certificates CE
