MMS100G.2 GSM-M-Bus Çevirici (2 Sayaç için)
MMS100G.2 GSM-M-Bus Çevirici (2 Sayaç için)
MMS100G.2 GSM-M-Bus Çevirici (2 Sayaç için)

MMS100G.168 GSM-M-Bus Gateway (For 16 Meters) (MMS100-E0G-GC1-B0016 GSM-M-Bus Çevirici)

Brand : Mikrodev
Price : $315.00  + VAT
Vat included : $378.00
Stock Amount : 1

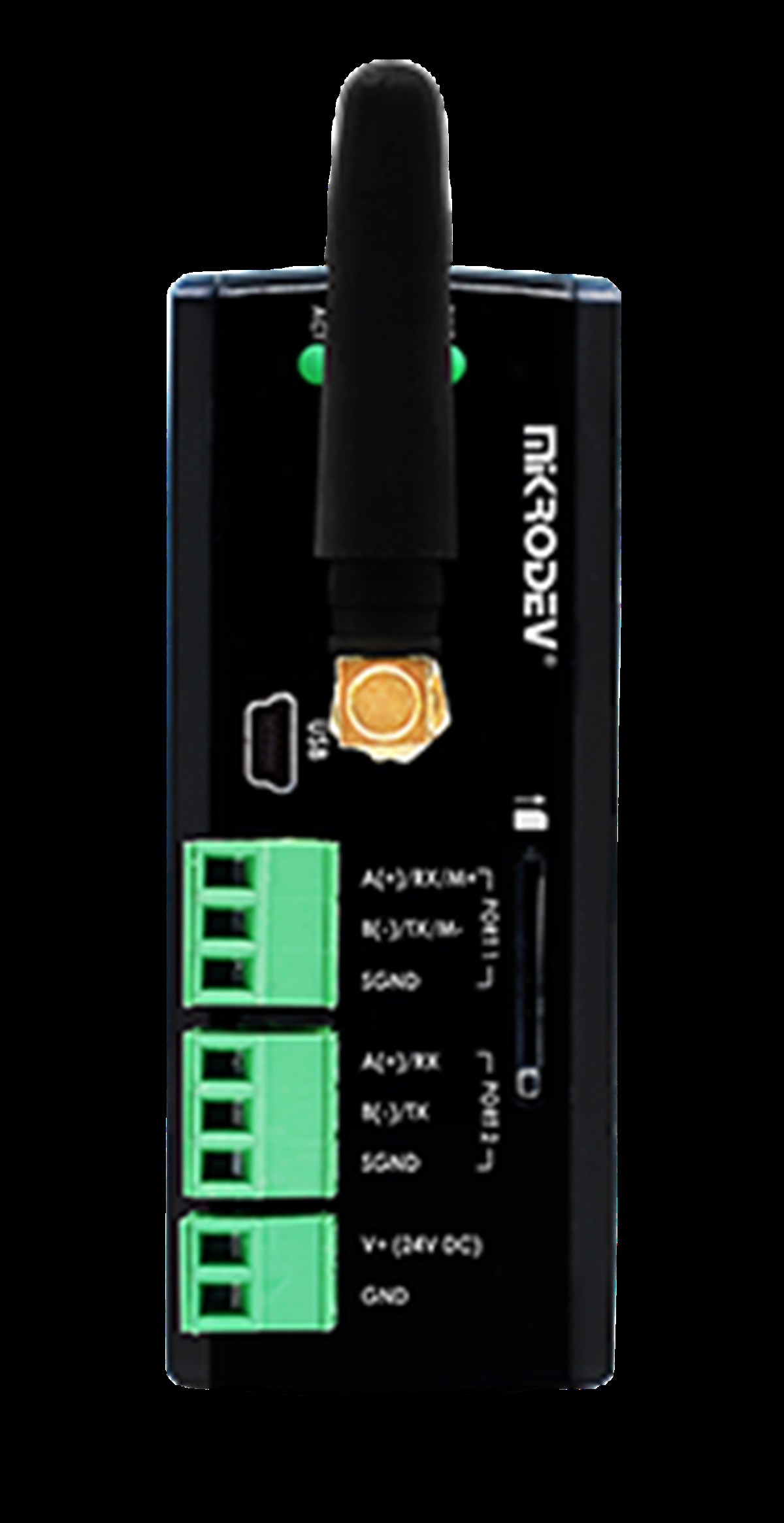

MMS100G.16 Mikrodev GSM-M-Bus Gateway
The number of meters: Max. 16 Pcs.

Add to Favorites
Add to my Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock

Piece

Artır Azalt
Recommend
Write a comment



MMS100G.16 Mikrodev GSM-M-Bus Gateway
The number of meters: Max. 16 Pcs.

Product Features
Creating Gateways Between M-BUS and MODBUS Protocols Yes
Primary Addressing for M-BUS Devices Yes
Secondary Addressing for M-BUS Devices Yes
Possibility to Read Multiple M-BUS Devices with a Gateway Yes
Automatic Association of M-BUS Data with MODBUS Addresses Yes
User-friendly Software for Configuring Gateway Yes
Programming with USB Cable Yes
Upload/Download Program over TCP/IP Yes
Master/Slave Communication Yes
Multiple Connectivity Yes
Auto-Detect Socket Disconnection and Auto-Reconnection Yes
Remote Firmware Upgrade Yes
View Status of Device Over Web-Interface Yes
Programming
Programming Editor Assistant Software
Device Search over Network Yes
Offline Configuration Yes
Import/Export Configuration Yes
M-BUS Port Connection Settings Yes
Defining M-BUS Devices Poll Frequency Yes
Primary Address Definitions Yes
Secondary Address Definitions Yes
Multiple M-BUS Device Selection Yes
Integrated Communication Ports
Integrated GSM/GPRS Modem 1 Port, Quad-Band 850 / 900 / 1800 / 1900 MHz
M-BUS 1 Port, M-BUS EN1434-3
Serial Ports 1 Port RS485 (3 kV ESD Protection) or 1 Port RS232
USB 1 Port, Mini USB Type B
Communication Protocols
Master Communication Protocols MODBUS TCP, M-BUS EN1434-3
Slave Communication Protocols MODBUS TCP, MODBUS RTU
Maximum Connection Count
Number of Server Socket 2
Number of Client Sockets per TCP Server Socket 16
Max Number of Meters on M-BUS Port 32
LED Signals
Power 1 LED Blue
Running Status 1 LED Blue
Error 1 LED Blue
Environmental Conditions
Operating Temperature -20 / +75 C
Storing Temperature -40 / +80 C
Humidity 5..95 RH
Protection Standard IP20
Operating Altitude 0..2000 m
Electrical Wiring
Serial Port Inputs Demountable Terminal Block with Screw, (pitch 3.81 mm)
Power Supply Input Demountable Terminal Block with Screw, (pitch 3.81 mm)
Supply
Supply Voltage 9..36 VDC
Supply Current 50 mA @ 24 VDC
Warranty
Duration 24 Months
Certificates CE
