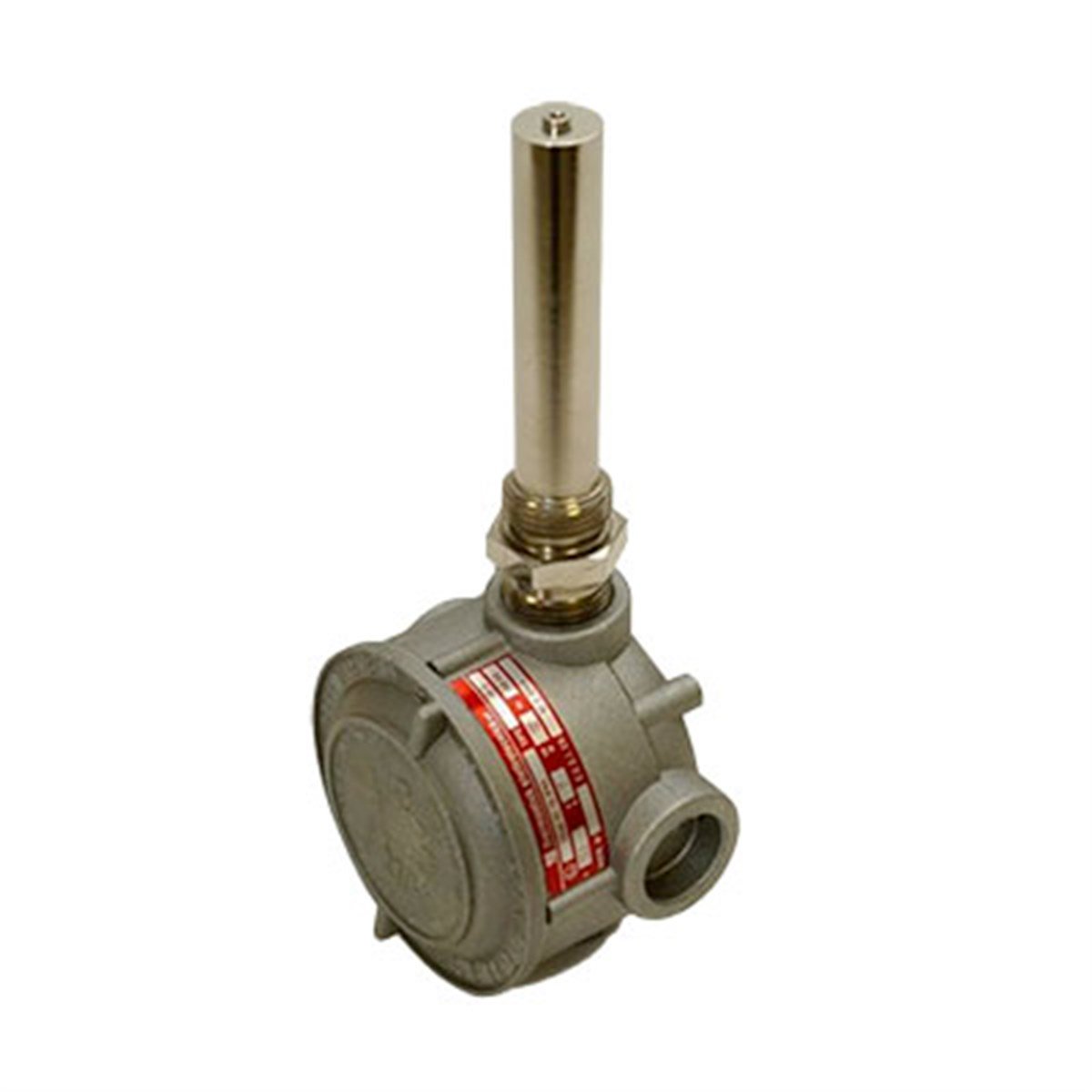

MS-MAX Eex-d Mechanical Heat Sensors IP66 (MAX 135°)
Description
The MS thermal detector is a fully mechanical device.
Its construction technology make it robust and reliable, suited for industrial and harsh enviroment where electronics devices are not suitable.
MS MAX : Fixed temperature detector. The detector is activated exceeding the maximum temperature .The alarm temperature is calibrated as required by customer over a range of -20÷190°C.
MS detectors are suitable for fire detection and extinguish systems.
Normally, is recommended a
Normally, is recommended a temperature of 30÷35°C above the maximum operating temperature of the environment .
The selection of the most appropriate categories of detectors is must be evaluated according to the characteristics of the environment.
MS detectors are common mounted in vertically position but is possible to install horizontally.
The Calibration accuracy for all models is ± 5°C.
The periodic system test of the heat detectors consist by introducing it a heat source that not exceed by 20% the fixed alarm temperature of the detector.
(for example for a heat detector with an alarm point of 100°C we can heat at maximum of 120°C)
MS ATEX are certificated IECEx e ATEX as follows:
IECEx INE 18.0023X INERIS 03ATEX0119X CE 2460
II 2GD Ex db IICT6 Gb Ex tb IIIC T85°C Db IP66 Ta: -20° + 70 °C
II 2GD Ex db IICT5 Gb Ex tb IIIC T100°C Db IP66 Ta: -20° + 85 °C
