PA-6810E PASSIVE INFRARED BEAM SENSOR (GUPPDPA6810)

PA-6810E PASSIVE INFRARED BEAM SENSOR

Features:
• COMPACT DESIGN

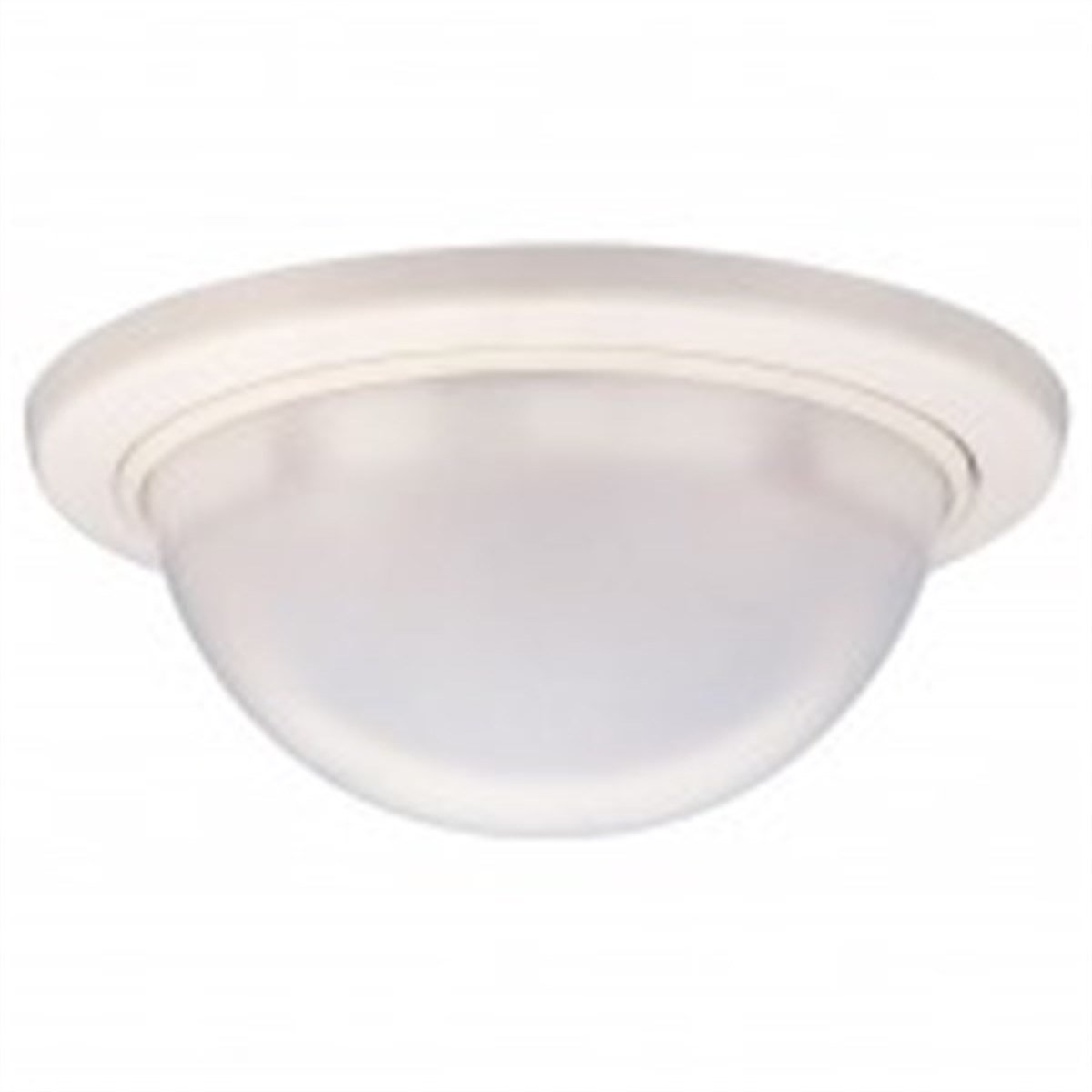

Our high technology provides one of the world’s smallest dome-shaped infrared sensor. Super slim and compact design: 120mm in diameter and 47mm in height.
• EASY INSTALLATION
Easy separation of the sensor unit and the base unit eases installation and maintenance. The sensor unit can be snapped into and out of the base unit. One touch
operation eases installation in high places.
• SILENT RELAY
Photo-mos FET switch relay adopted at alarm output. Completely noiseless by eliminating the movable part which is on the inside of the relay.
• HIGH STABILITY
Signal processing by the original CPU. Excellent R.F.I. and noise immunity. Good protection against insect intrusion.
• SENSITIVITY CHANGEOVER
Sensitivity is adjustable by 4 steps: 60%, 80%, 100%, 120%.
• PULSE COUNT CHANGEOVER
Mode selector allows setting for 1,2,3 or 4 triggers to initiate an alarm output to suit its application.
• ALARM CONTACT CHANGEOVER
Mode selector allows N/O or N/C contact to be selected.
• AUTO/MANUAL MEMORY
Alarm memory can be either automatically or manually controlled.

Specifications:

Sensitive zone:33 pairs

Supply voltage: 9 to 18V DC (non-polarity)

Current consumption: N/C: 25mA Max. N/O: 35mA Max.

Adjustment: Horizontally ±25°
