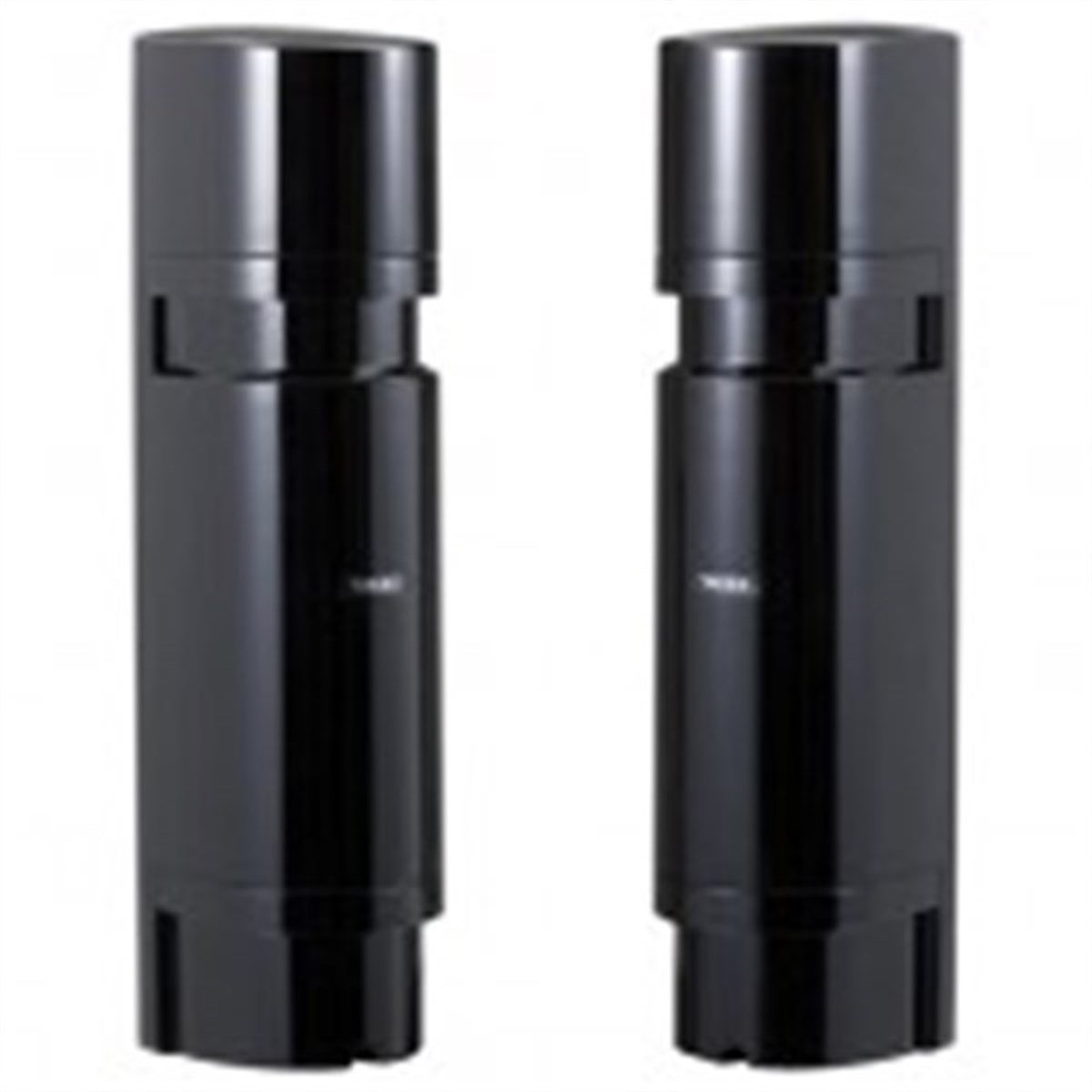

PB-IN-100HFA PHOTOELECTRIC BEAM SENSOR (GUPBDPBIN100)

PB-IN-100HFA PHOTOELECTRIC BEAM SENSOR (INTELLIGENT QUAD SERIES, Outdoor 330 ft. (100m))

The PB-IN-HFA series is the flagship of the TAKEX range of infrared photoelectric beams. By synchronizing 16 beam paths between Transmitter and Receiver, the PB-IN-HFA series offer unrivaled stability in perimeter security. Coupled with channel separation and environmental (anti-fog) circuitry, the PB-IN-HFA series has earned worldwide recognition as the standard our rivals aspire to.

Features:

• 4 x synchronised high power beams
• 4 selectable beam channels to prevent crosstalk
• environmental monitoring circuit
• dynamic auto-gain lock (AGL)
• vivid internal body stickers aid beam alignment procedure
• double modulation for unsurpassed light immunity
• auto-gain control (AGC)
• 50,000 lux sunlight immunity
• IP55 housing
• Protection distance:Outdoor 100m or less
                                  Indoor 200m or less
• Max. beam range (approx.):1000m
• Supply voltage:12V to 30VDC (Non-polarity)
