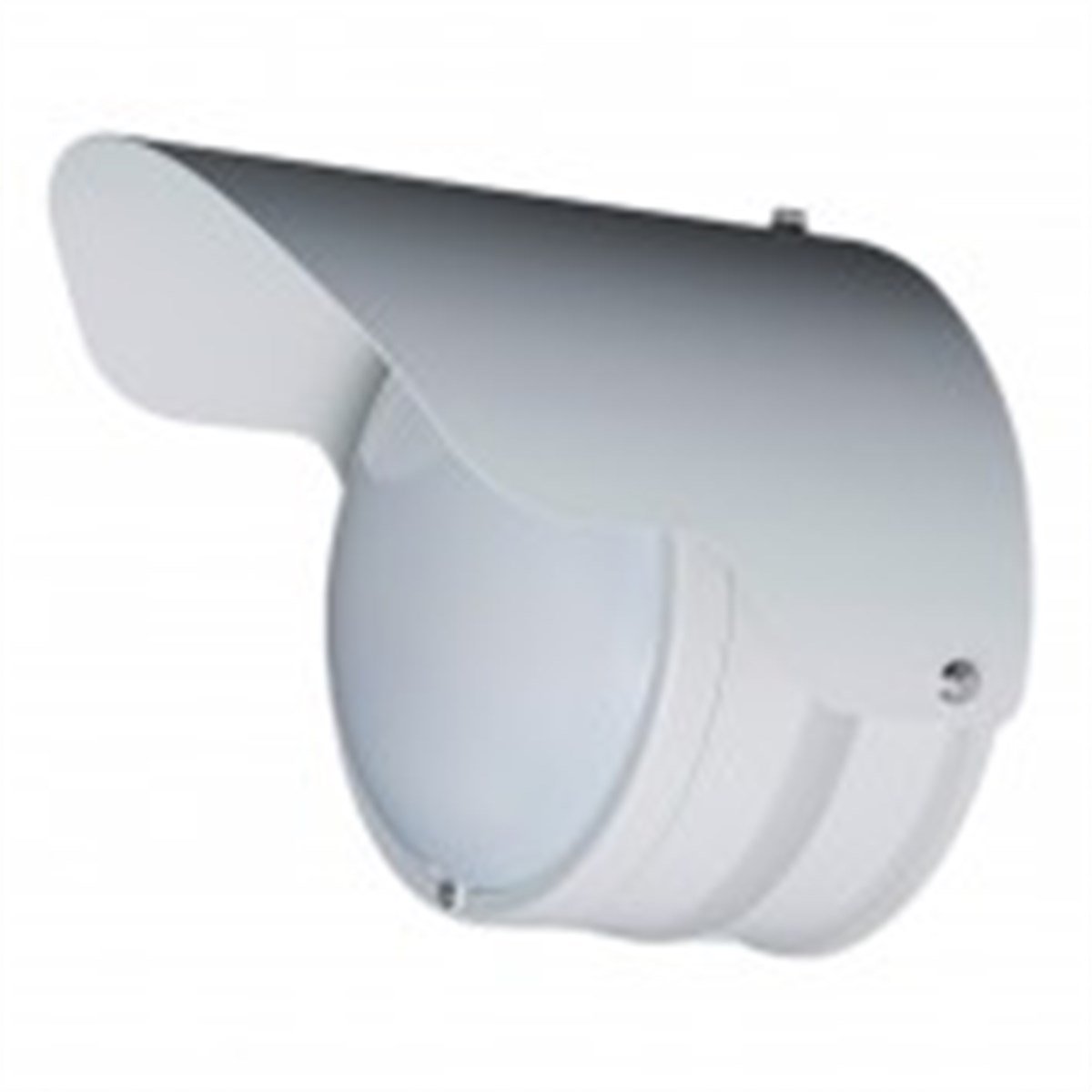

PIR-50NE PASSIVE INFRARED SENSOR (GUPPDPIR50NE00)

Alarm output:

· Dry contact (semi-conductor) output (NC/NO)
· 24V (AC/DC) 0.25A (resistive load)
  (protective resistor 3.3Ω)
· Warm up: approx. 1 min. (no alarm condition)
· One-shot output at detection (approx. 2sec.)
· Continuously output when detecting low supply voltage

Tamper output:

· Dry contact output: (NC)
· 30V (AC/DC) 0.1A (resistive load)
· Tamper output: real time output

Alarm LED:

· Red LED
· Blinks during warm-up (approx. 1 min)
· One shot lights (approx. 2 secs) at detection
· Continuously lights when detecting low supply voltage

Functions:

· Low supply voltage alarm
· Tamper signal
· LED control (L/C)
· Alarm LED (ON/OFF)
· Sensitivity adjustable between 30% and 170%
