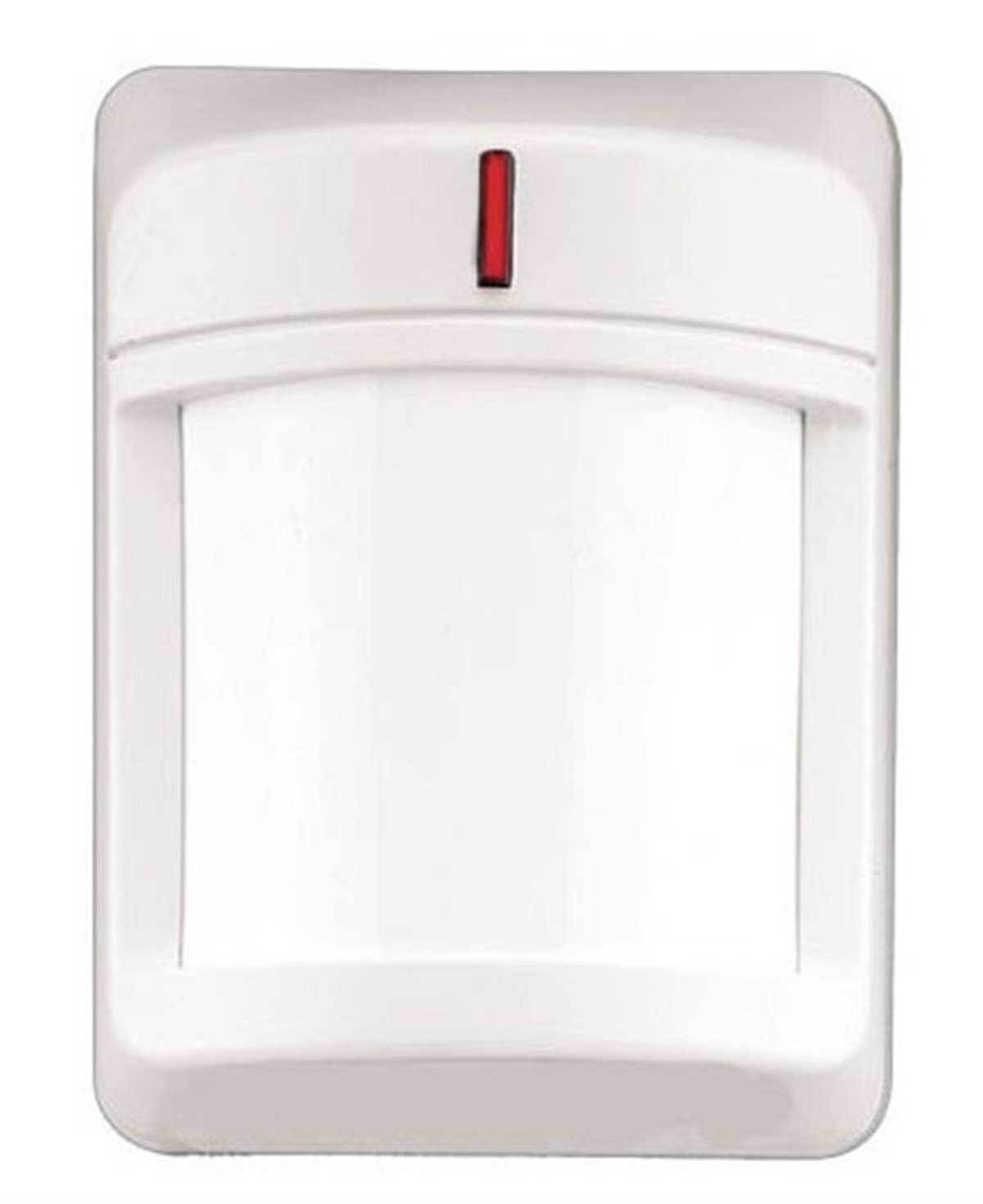

PIR1510 PASSIVE INFRARED MOTION DETECTOR (GUANAPPIR1510)

PIR1510 PASSIVE INFRARED MOTION DETECTOR

The tried and true PIR1500 & 1510 passive infrared motion detectors offer dependable NAPCO sensor technology optimizing intruder “catch” sensitivity with false alarm prevention. Both compact, unobtrusive units blend with any décor and feature a 30’ x 30’ (9.1m2) wide angle coverage. The PIR1510 model provides additional coverage directly beneath the sensor, using its look-down or creep-zone.
SPECIFICATIONS
• Operating temperature*: -10 to +50 degrees C (14 º to 122º F)
• Mounting: Wall or corner, 12’ (3.6m) max. (Optional SVL2 Swivel Bracket can be used for pattern aiming and for mounting heights above 12 ft. (3.6m)
• Output relay: Form A; normally closed
• Relay time: Approx. 3 seconds
• Alarm Relay: 100mA, 24Vdc with internal 10 ohm current limiting resistor
• Power supply requirements: 10.6 to 16VDC nominal with battery backup from the control panel.
• Current drain: 23mA (idle/alarm) at 12VDC (nominal);
                         33mA (idle or alarm ) at 16VDC (nominal);
                         44mA (trouble condition) at 16VDC (nominal)
• Dimensions: 3.3”H x 2.5”W x 1.9”D (8.4 x 6.4 x 4.8 cm) (HxWxD)
• Shipping weight: 5 oz (142 gm)
