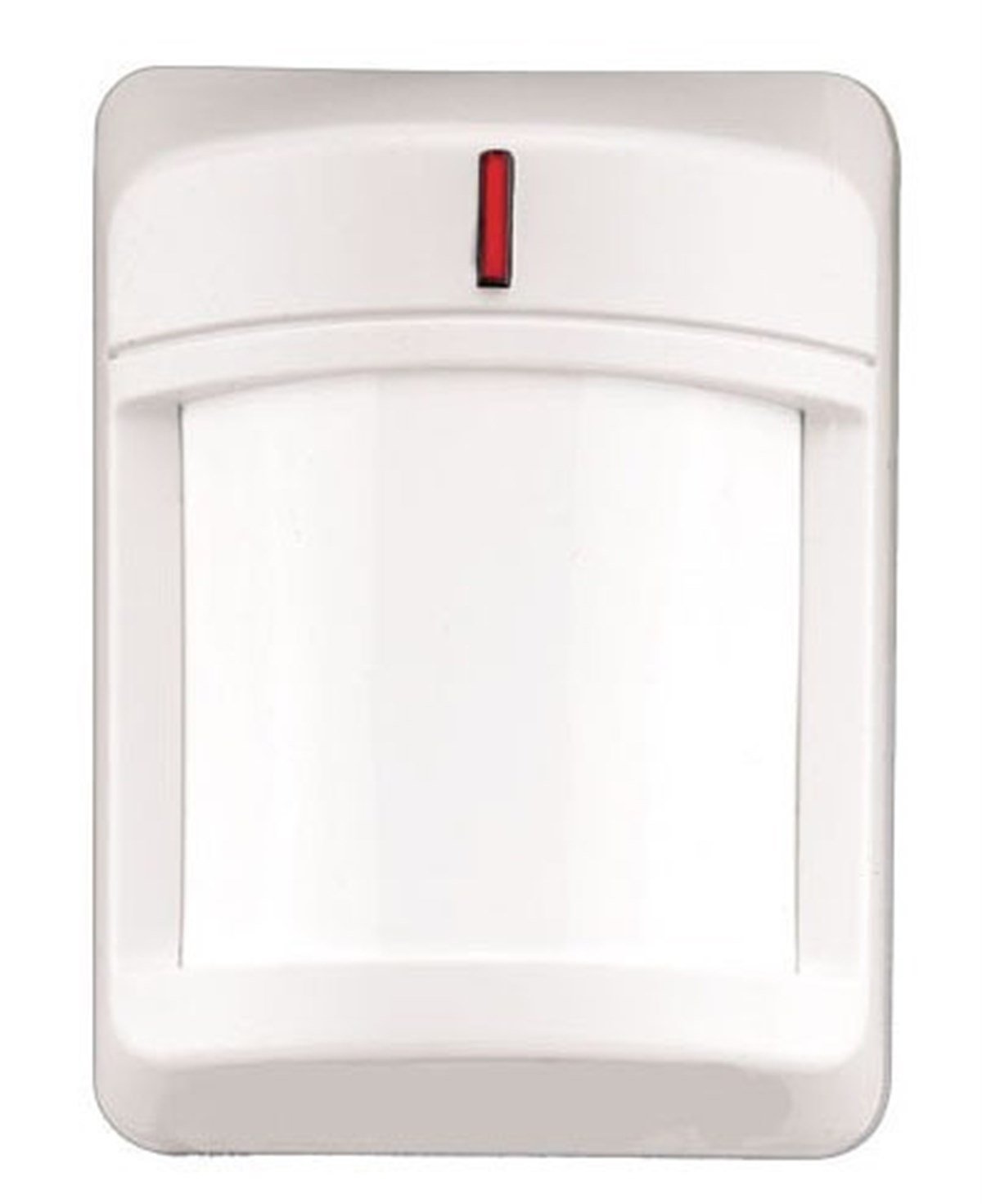

PIR1680PT PASSIVE INFRARED MOTION DETECTOR (GUANAPPIR1680PT)

PIR1680PT PASSIVE INFRARED MOTION DETECTOR

Advanced PIR1680 Series Passive Infrared Motion Detectors exemplify NAPCO sensor technology’s innovation, increasing dependability without compromising intruder “catch” sensitivity.For applications where animal/pet immunity is key, the PIR1680PT supports 65lb. (29kg) pet protection within its 45’ (13.7m) range.Or, the original model PIR1680, has a 50‘ (15.2m) range and offers nominal 20lb. (9kg) animal/rodent immunity.

SPECIFICATIONS
Microprocessor: 2K ROM with A-D Converter
Operating temperature*: -10 to +50 degrees C (14o to 122o F)
Freeze damage alert: 40oF (4oC)
Heat damage alert: 90oF (32oC)
Mounting: Wall or corner, 12’ (3.6m) max.; For pet/animal applications 7’ (2.1m) is recommended.
Output relay: Form A; normally closed
Relay time: Approx. 3 seconds
Alarm Relay: 100mA, 24Vdc with internal 10 ohm current limiting resistor
Multi-mode Trouble Output (Open collector)
Self-Test Interval: 11 - 16 hrs.
Power supply requirements: Filtered 10.6 to 16VDC nominal with battery backup form the control panel.
Current drain: 28mA (idle/alarm) at 12VDC (nominal)
Dimensions: 3.3”H x 2.5”W x 1.9”D (8.4 x 6.4 x 4.8 cm) (HxWxD)
Shipping weight: 5 oz (142 gm)
