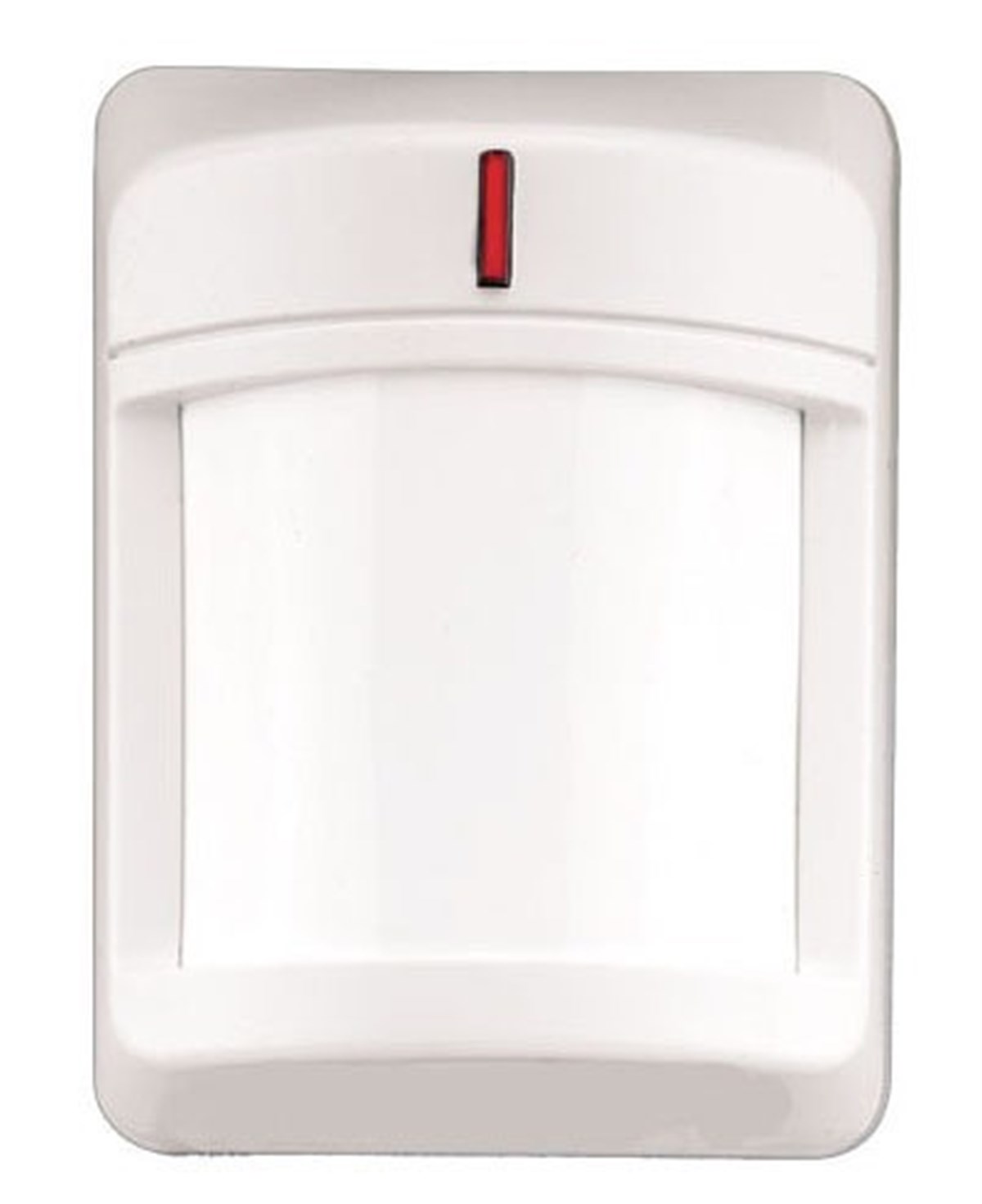

PIR1710 PASSIVE INFRARED MOTION DETECTOR (GUANAPPIR1710)

PIR1710 PASSIVE INFRARED MOTION DETECTOR

The field-proven PIR1710 passive infrared motion detector offers advanced NAPCO sensor technology for increased reliability and intruder “catch” performance.

SPECIFICATIONS
• Operating temperature*: -10 to +50 degrees C (14 º to 122º F)
• Mounting: Wall or corner, 12’ (3.6m) max. (Optional SVL2 Swivel Bracket can be used for pattern aiming and for mounting heightsabove 12 ft. (3.6m)
• Output relay: Form A; normally closed
• Relay time: Approx. 3 seconds
• Alarm Relay: 100mA, 24Vdc with internal 10 ohm current limiting resistor
• Power supply requirements: 10.6 to 16VDC nominal with battery backaup form the control panel.
• Current drain: 23mA (idle/alarm) at 12VDC (nominal);
                         33mA (idle or alarm ) at 16VDC (nominal);
                         44mA (trouble condition) at 16VDC(nominal)
• Dimensions: 3.3”H x 2.5”W x 1.9”D (8.4 x 6.4 x 4.8 cm) (HxWxD)
• Shipping weight: 5 oz (142 gm)
