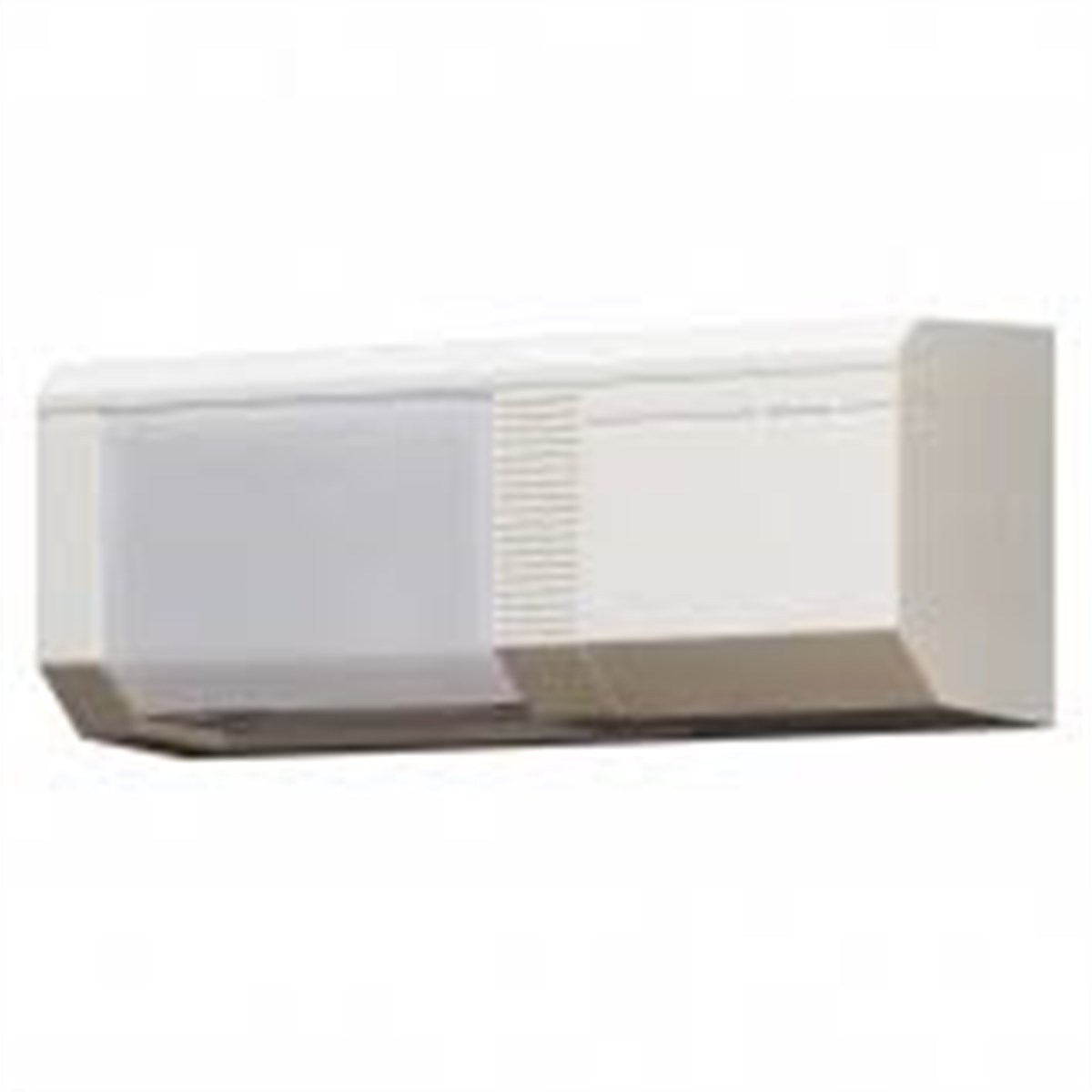

PS-520EW PASSIVE INFRARED SENSOR (GUPPS520EW)

PS-520EW PASSIVE INFRARED SENSOR

Designed for applications involving coverage at the threshold of a doorway, the TAKEX Passive Infrared Sensor detects the differential between a human body and the floor. It features several field selectable options and adjustments to make it the ideal choice for access control applications, door strike release, alarm system shunting and automatic door operation.

TOTALLY STABLE, TOTALLY RELIABLE

Dual pyroelectric for increased stability against external light. Special circuitry provides high immunity to RFI and other electrical noise.

ADJUSTABLE COVERAGE AREA

Adjust from straight downward 'blanket' covering the door to angles of 35˚ in front of door.

ADJUSTABLE SENSITIVITY

Increase or decrease to suit your site needs.

SINGLE OR DOUBLE DOOR COVERAGE

The two position mirror provides coverage of single and double doors.

ADJUSTABLE RELAY TIMER

0.25 to 60 second adjustment for relay hold time.

TWO RELAY OUTPUTS

Both normally open/normally closed.

HEAVY DUTY RELAY OUTPUT

Relays drive up to 1 amp of current for controlling door strikes and magnetic locks.

FAIL SAFE - FAIL SECURE

Selectable by DIP Switch.
