Solcon 400V - 315 kW - 580 A
Soft Starter
3 Phase Thyristor Controlled
With Internal By-Pass

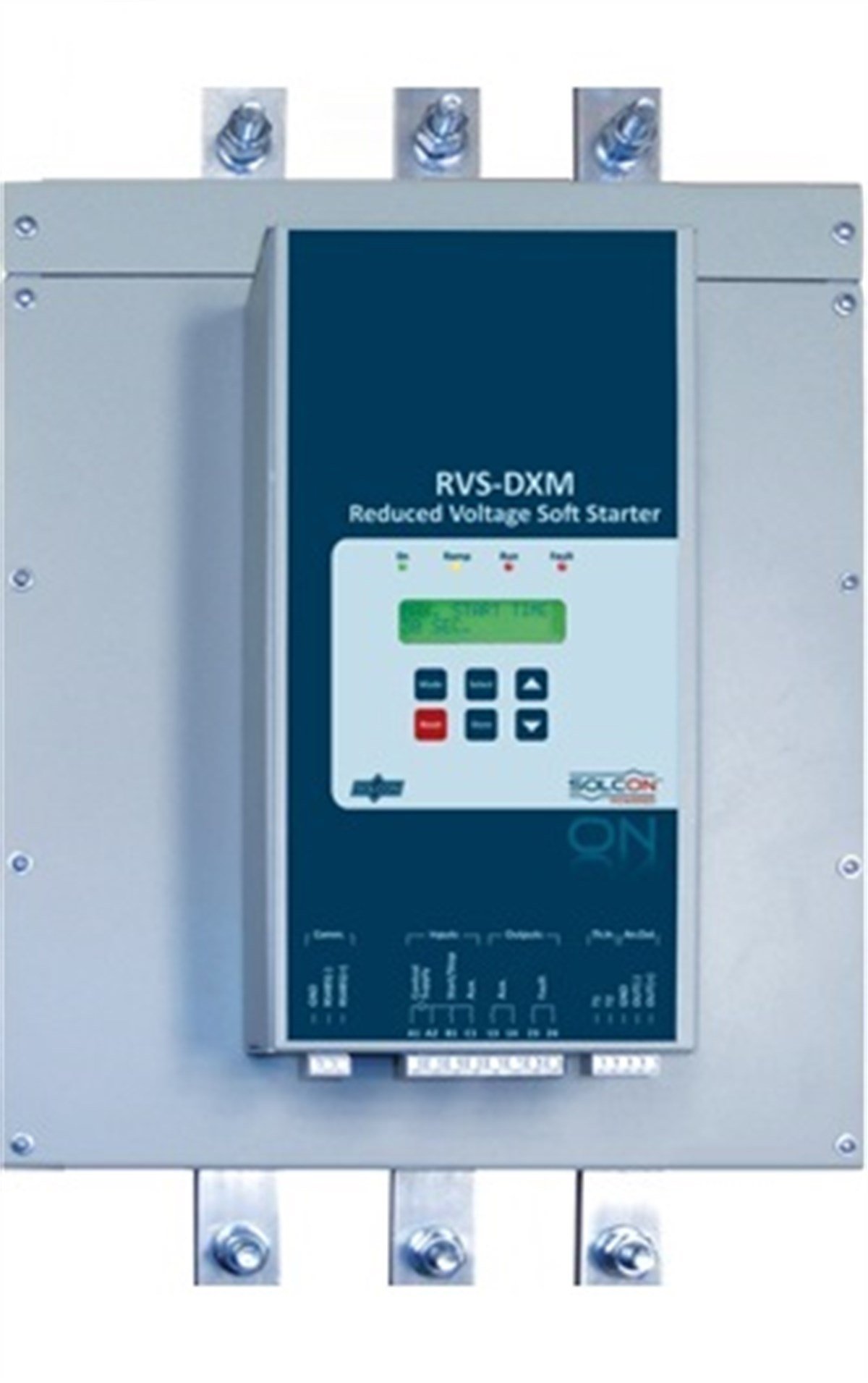

* Product Image Representation. Actual Size (WxHxD) = 480x791x302 mm, Weight: 55.5 kg



The Solcon RVS DX series softstarter offers the best solution for electronically controlled, improved and soft start / stop applications. With its built-in By-Pass, its small footprint design provides excellent performance while providing long-term reliability with comprehensive motor protection functions. It is a product optimized for high efficiency engines.
Depending on your needs, Modbus, Profibus, communication options are available.

Standard Features:

LCD Panel
Internal By-pass system
Communication Types (Optional):
- RS485 (Modbus),
- Profibus
Multiple Language Options (English, German, Spanish..v.b)
Event and data monitoring
Inrush current can be adjusted between 10% and 50%
Current limit is 100% In and 400% In
Start time can be increased up to 30 seconds
Downtime can be increased up to 30 seconds
Two different take off stop parameters can be specified
Take-off and stop ramps are selectable
External Fault ignition
Motor protection features remain active even in the case of bypass

Motor Protection Features:
Short circuit (Magnetic)
Overload (Thermal)
Maximum departure time
Phase loss protection
Phase sequence distortion
Over or under voltage
Thyristor short circuit
Connection error
Over temperature
Low current
External error signal
